Propel Gearbox and Swing Gearbox Oil

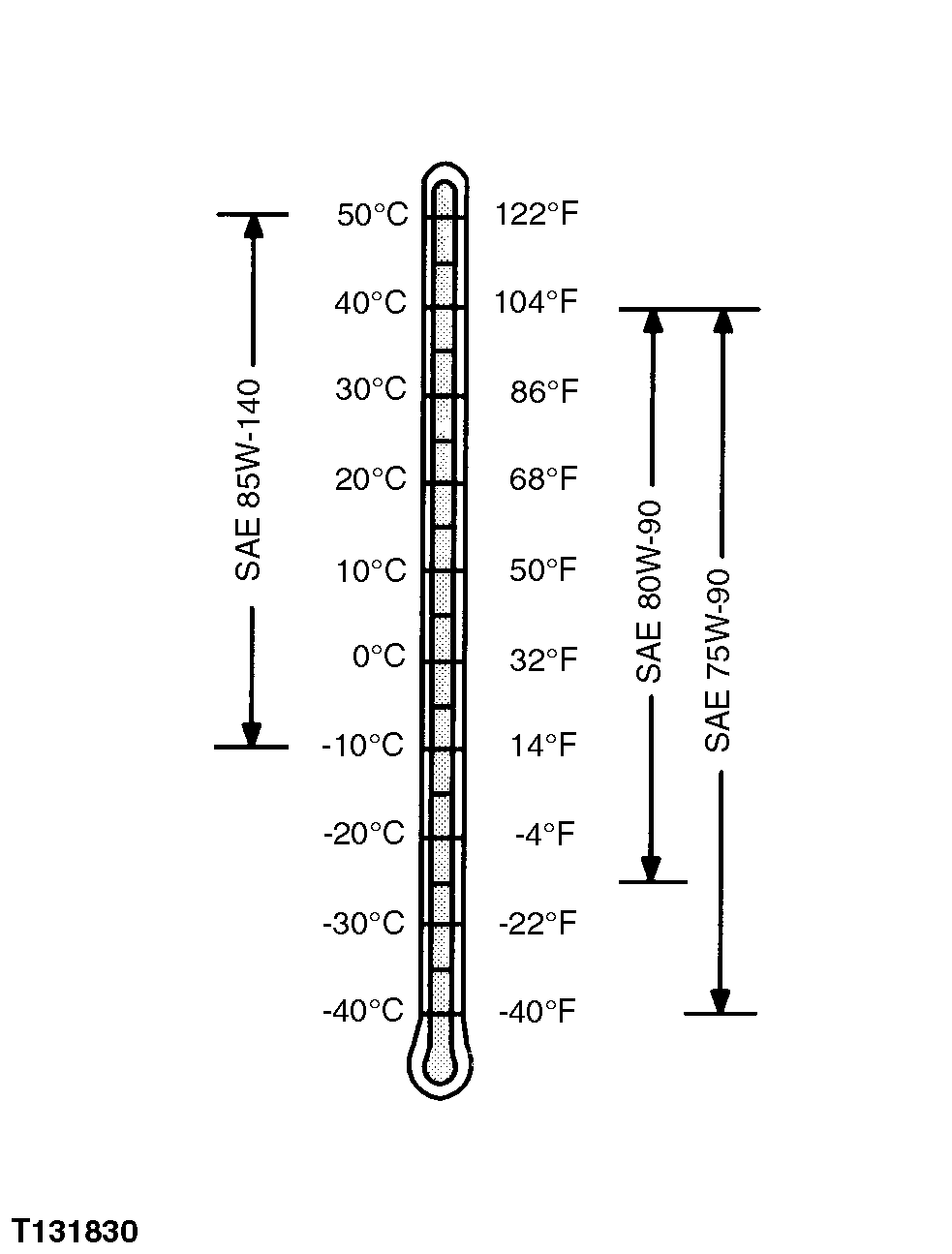

Use oil viscosity based on the expected air temperature range during the period between oil changes.

The following oils are preferred:

  • John Deere GL-5 GEAR LUBRICANT
  • John Deere EXTREME-GARD

Other oils may be used if they meet API Service Classification GL-5.

T131830

CED,OUOE049,103 -19-14JUN00-1/1
