Heating and Air Conditioning Controls

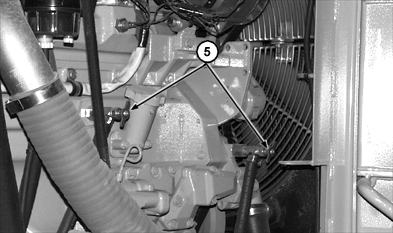

NOTE: Open valves (5) before operating heater.

IMPORTANT: Before you start air conditioner first time in the season, check filters and condenser. Clean if necessary. Check refrigerant level. (See Maintenance chapter.)

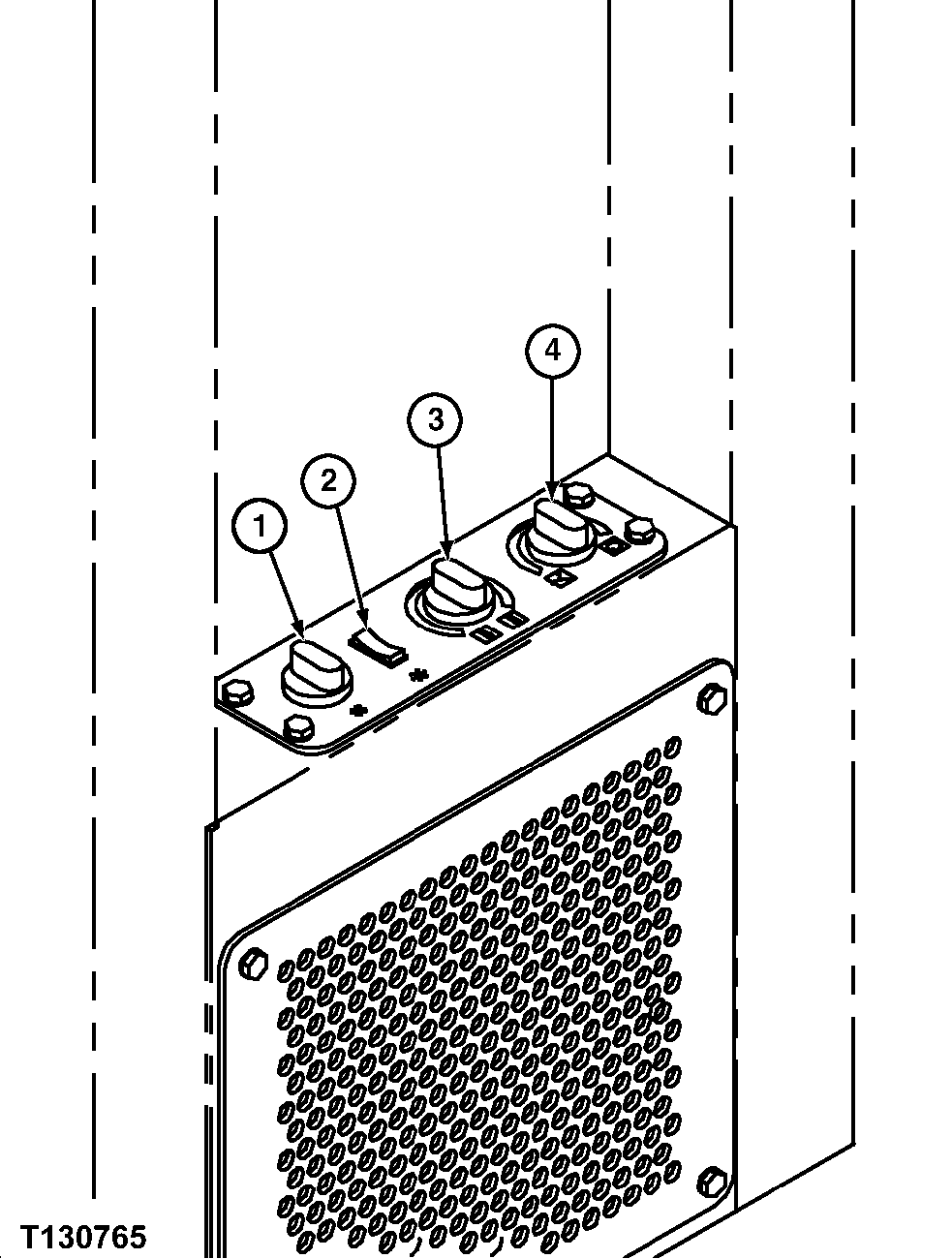

Press air conditioning switch (2) on and turn temperature control knob (3) to operate air conditioning. Turn temperature control knob clockwise to decrease temperature.

Turn blower switch (1) clockwise to increase blower speed. There are three speed settings plus an off position.

Turn cab fresh air/air recirculate knob (4) counterclockwise to allow fresh air into cab. Turn clockwise to recirculate air in cab.

Adjust direction of air vents as desired.

1-Blower Switch
2-Air Conditioning Switch
3-Temperature Control Knob
4-Cab Fresh Air/Air Recirculate Knob
5-Valve (2 used)

CED,OUOE049,15 -19-22MAY00-1/1
