Adjusting Suspension Seat

causym CAUTION: You can lose control of machine and be injured if seat is loose or not adjusted properly. Be sure seat is properly locked in the correct position before operating the machine.

Rotate knob (2) to adjust seatback angle. Clockwise rotation reclines seatback. Counterclockwise rotation brings seatback forward.

Loosen knobs (4) to adjust armrest height, tighten knobs when desired position has been achieved.

Loosen knob (3) to adjust armrest forward and backward position, tighten after desired position has been achieved.

Rotate knob (1) clockwise to increase lumbar support. Rotate knob counterclockwise to decrease lumbar support.

Move seat cushion adjustment knob (F) clockwise for firm ride and counterclockwise for soft ride.

NOTE: Before raising seat, move entire seat assembly fully forward.

Lift lever (6) to adjust height of seat. There are three height positions. Release lever when desired position has been achieved.

Pull lever (7) to the left to move seat forward or backward. Release lever to lock seat in position.

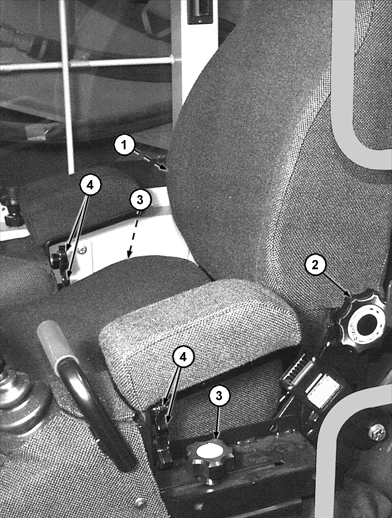

1-Lumbar Adjustment Knob
2-Seatback Angle Adjustment Knob
3-Armrest Forward and Backward Adjustment Knob (2 used)
4-Armrest Height Adjustment Knob (4 used)

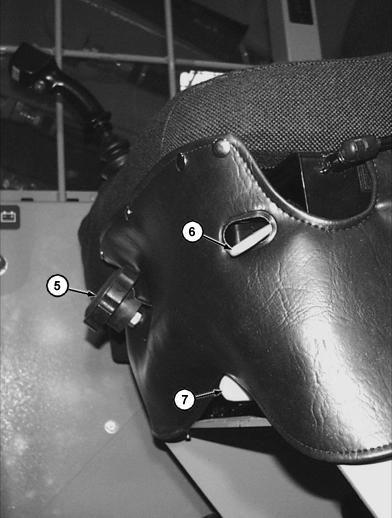

5-Seat Cushion Adjustment Knob
6-Height Adjustment Lever
7-Forward and Backward Adjustment Lever

T130831B
T130827B

CED,OUOE049,18 -19-22MAY00-1/1
