Inspect Machine Daily Before Starting

Do periodic service checks in the Maintenance-Every 10 Hours or Daily chapter.

FIRE PREVENTION: Clean engine compartment of debris. Check compartment drains under upper mainframe for any buildup of grease, oil, fuel, or debris.

ELECTRICAL SYSTEM: Check for worn or frayed wires and loose or corroded connections.

FRONT-MOUNTED EQUIPMENT, SHEET METAL, HARDWARE: Check for bent, broken, loose or missing parts.

HYDRAULIC SYSTEM: Check for leaks, missing or loose clamps, kinked hoses, and lines or hoses that rub against each other or other parts.

LUBRICATION: Check lubrication points shown on Periodic Maintenance chart.

PROTECTIVE DEVICES: Check guards, shields, OPS, covers, seat belt, and travel alarm.

SAFETY: Walk around machine to clear all persons from machine area.

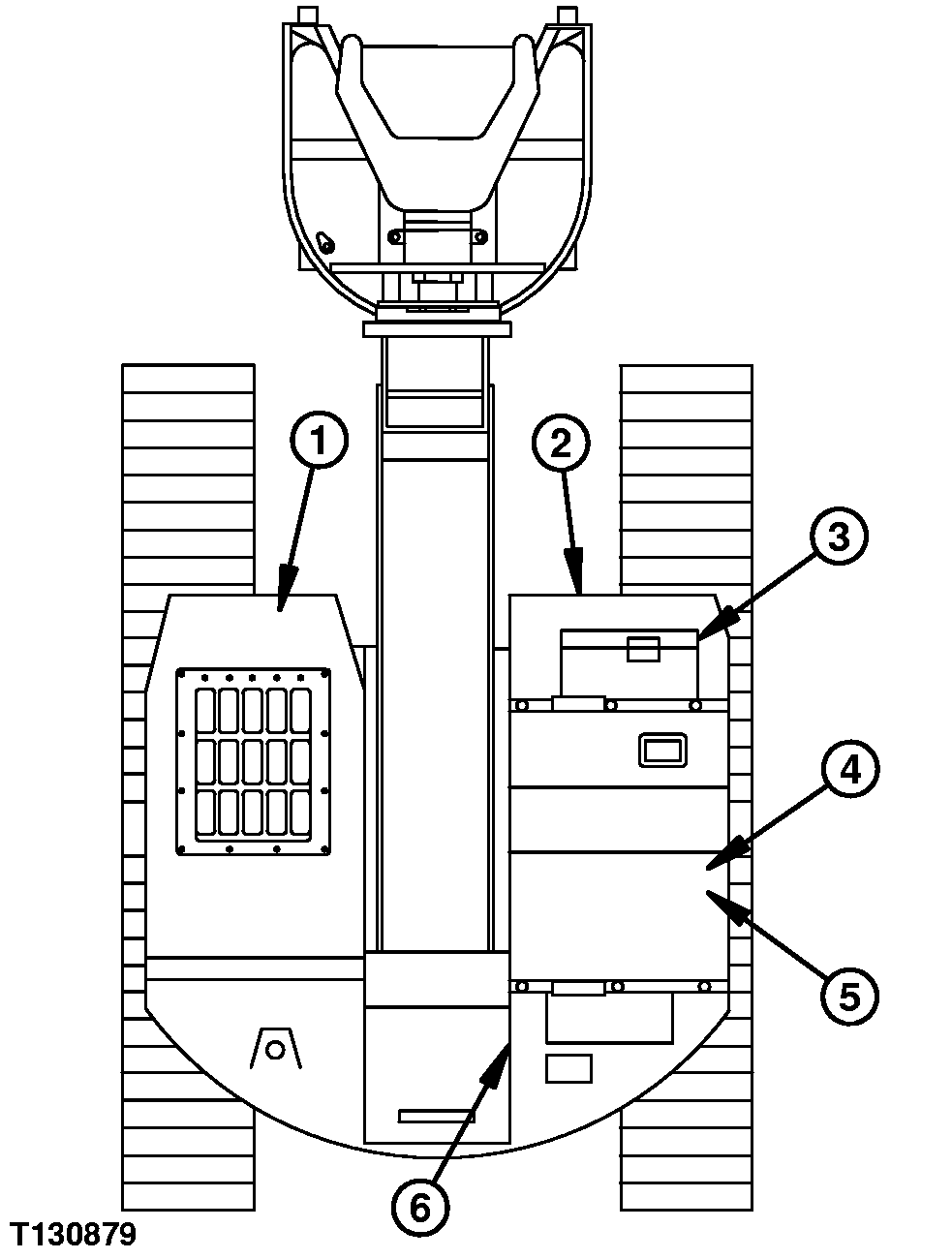

1-Check Pedals and Control Levers for Freedom of Movement; Clean Operator's Station
2-Clean Screen and Fins on Radiator, Oil Cooler and Charge Air Cooler (If Equipped)
3-Check Coolant Level at Surge Tank (200 HP Engine)
4-Check Coolant Level at Recovery Tank (170 HP Engine)
5-Check Engine Oil Level
6-Check Hydraulic Reservoir Oil Level

CED,OUOE049,20 -19-22MAY00-1/1
