Steering the Machine

CAUTION: Keep bystanders clear of machine when traveling. Before moving machine, determine which way to press propel pedals.

Keep bystanders clear of machine when traveling.

The instructions below apply when the propel motors (4) are to the rear of the machine. If the propel motors are to the front of the machine, the machine moves OPPOSITE to the direction described.

FORWARD TRAVEL: Push down on front (1) of both pedals.

REVERSE TRAVEL: Push down on rear (3) of both pedals.

NEUTRAL POSITION (2): Propel brakes will automatically stop and/or hold the machine.

RIGHT TURN: Push down on front of left pedal.

LEFT TURN: Push down on front of right pedal.

SHORT TURN (COUNTERROTATE): Push down the front of one pedal and the rear of the other.

IMPORTANT: When traveling over long distances, swing upperstructure so propel motors are to the rear.

LONG DISTANCE TRAVEL: When traveling over long distances, swing upperstructure so propel motors are to the rear.

CAUTION: Prevent possible injury from machine tipping. Operate control pedals slowly when traveling down a slope.

TRAVELING DOWN A SLOPE: Operate control pedals slowly when traveling down a slope.

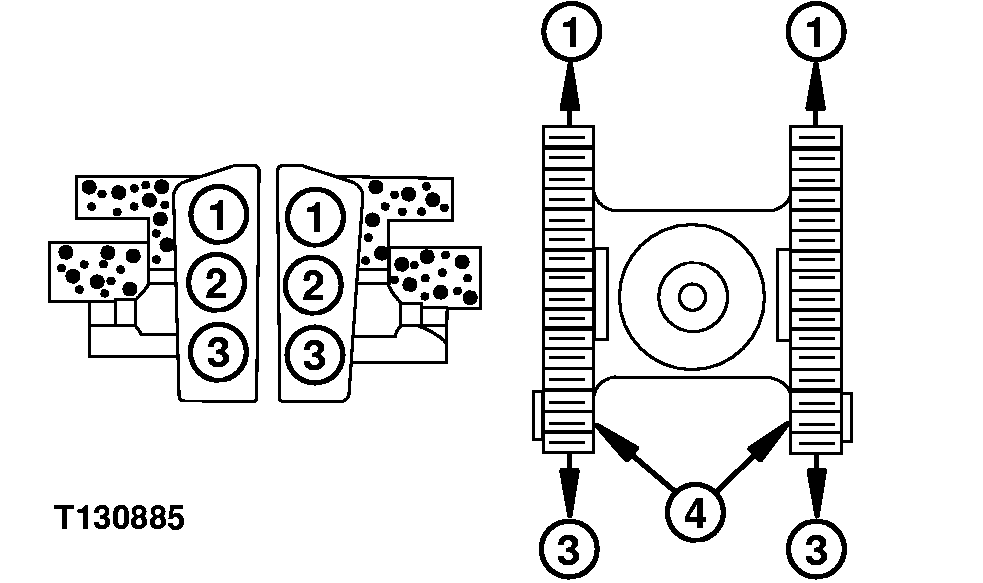

1-Front of Propel Pedal/Forward Travel
2-Neutral Position
3-Rear of Propel Pedal/Reverse Travel
4-Propel Motor Cover
