Right Control Lever-Intermittent Saw Head

CAUTION: Never place any part of body beyond window frame. It could be crushed by the boom if boom control lever is accidentally bumped or otherwise engaged. If window is missing or broken, replace immediately.

Prevent possible injury from unexpected machine movement. Make sure you know the location and function of each control before operating.

Make sure all controls operate as described. If control functions have been altered, such revisions should be clearly identified on the machine and noted in this manual.

IMPORTANT: When operating the machine, avoid contacting tracks with attachment when operating boom and arm cylinder functions. Avoid contacting operator's station or grille housing with front-mounted equipment.

When operating over the end of the tracks, propel motors should be at the rear to minimize chain and sprocket loading and to maximize machine stability and lift capacity.

Refer to your attachment equipment manual for more specific attachment operating instructions.

When a control lever or switch is released, it will return to neutral. The machine will remain positioned.

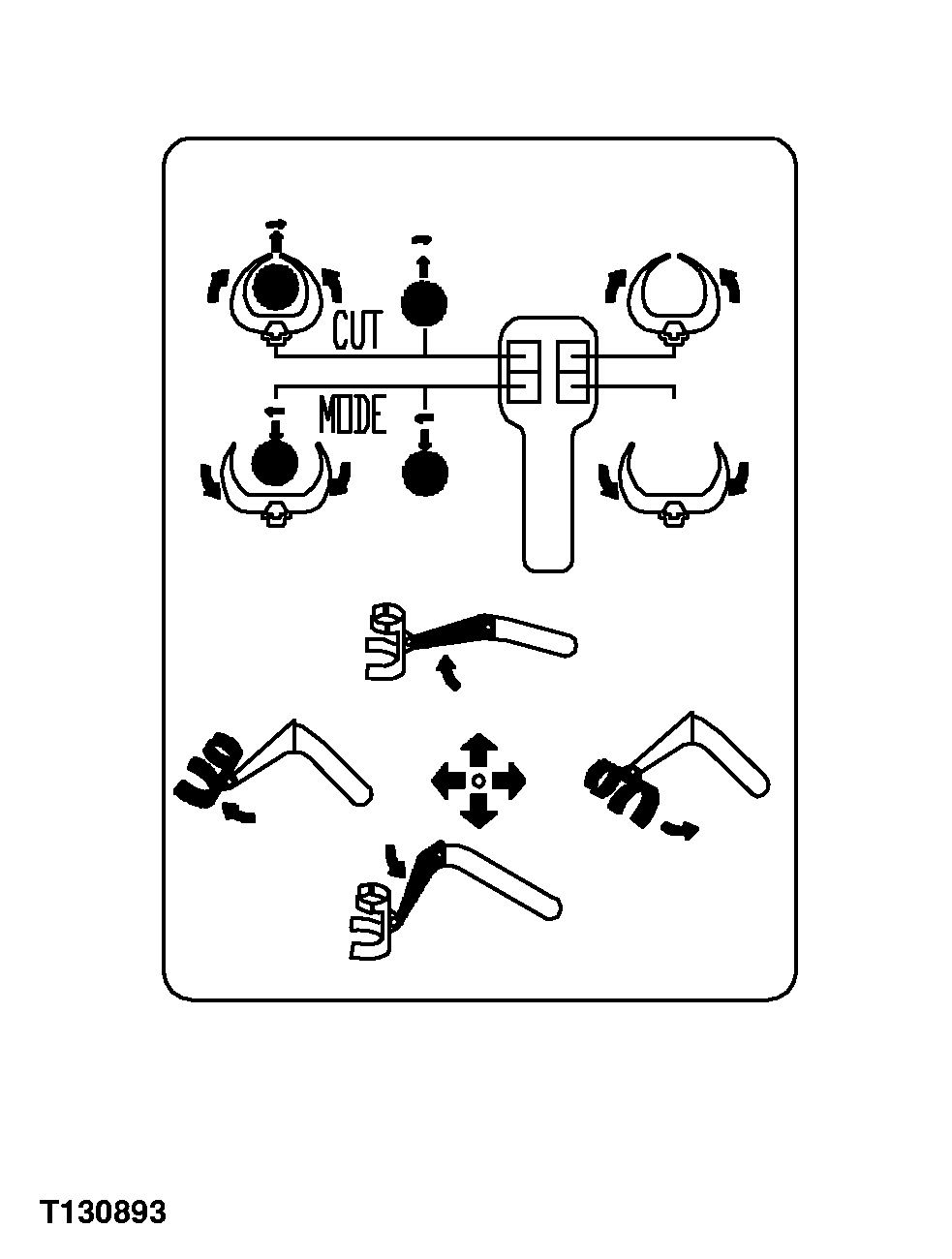

1-Tilt Rearward
2-Tilt Forward
3-Arm In
4-Arm Out
5-Grapple Open
6-Grapple Close
7-Saw Advance
8-Saw Retract

CED,OUOE049,30 -19-22MAY00-1/1
