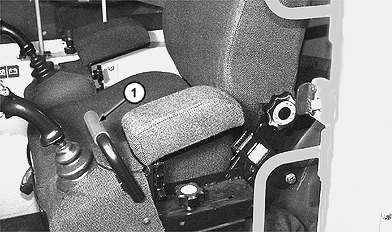

Left Armrest Lever

Use lever (1) to raise or lower armrest.

· Raising armrest shuts off pilot controls and continuous saw (if equipped).

· Lower armrest to RUN position and:

1. Cycle pilot pressure switch OFF/RUN to engage pilot pressure.
2. Cycle saw switch OFF/ON to engage continuous saw (if equipped).

Always raise armrest when you stop the engine or leave the operator's station so the machine will not move if a lever or pedal is moved.

1-Lever
