Clean Radiator, Oil Cooler, and Charge Air Cooler (If Equipped)

2. Open access door and lock in open position.

CAUTION: Prevent possible injury from flying chips. Pressurized water is the preferred method to remove debris and any oil or fuel film on the cores. Clear area of bystanders, guard against flying chips, and wear personal protection equipment including eye protection.

3. Clean radiator and oil coolers. Do not spray oil cooler fins at an angle. Fins may bend.

4. Remove debris from air conditioner screen.

5. Close access door.

6. Tighten cap screws.

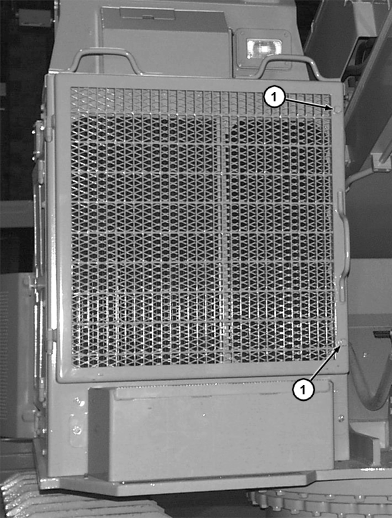

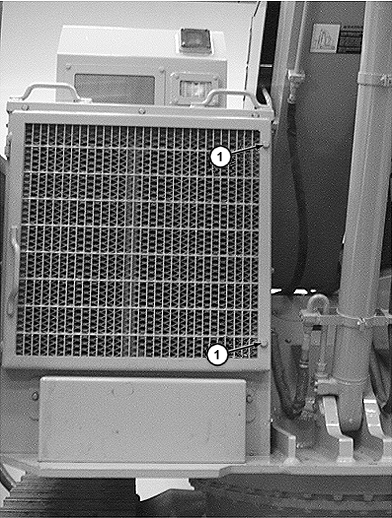

1-Cap Screw (2 used)

CED,OUOE049,39 -19-24MAY00-1/1
