Check Air Conditioning Condenser

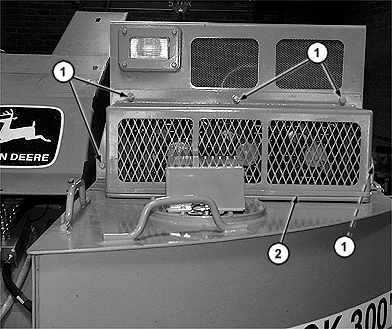

1. Remove cap screws (1).

2. Remove cover (2).

causym CAUTION: Prevent possible injury from flying chips. Pressurized water is the preferred method to remove debris and any oil or fuel film on the cores. Clear area of bystanders, guard against flying chips, and wear personal protection equipment including eye protection.

3. Check condenser If dirty, clean with pressurized air.

4. Replace cover and cap screws.


1-Cap Screw (5 used)
2-Cover

T130982B

CED,OUOE049,40 -19-24MAY00-1/1
