Remove and Clean Fuel Tank Outlet Screen

If fuel screen is clogged, debris must be removed and screen cleaned.

1. Remove fuel tank cap.

2. Drain fuel from tank.

3. Remove cover from fuel tank.

4. Disconnect fuel hose (A).

5. Remove screen (B) from inside fuel tank.

6. Remove debris from screen with clean solvent or diesel fuel, or install a new screen.

7. Flush debris out of fuel tank.

8. Install screen.

9. Install fuel hose.

10. Install cover. Install fuel tank cap.

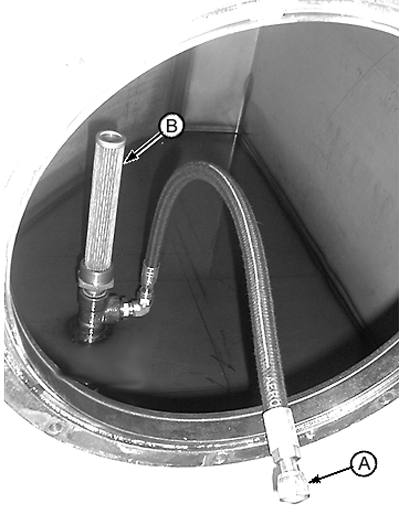

A-Fuel Hose
B-Outlet Screen

T118312B

CED,OUOE049,41 -19-24MAY00-1/2

causym CAUTION: Handle fuel carefully. Shut engine off before fueling. Do not smoke while you fill fuel tank or work on fuel system.

IMPORTANT: Wait 20 minutes before filling fuel tank to allow sealant to dry.

11. Fill fuel tank. Approximate capacity is 560 L (148 gal).

NOTE: Rotate upperstructure approximately 20 degrees to the left to add fuel to the fuel tank.

TS185
T130925B

CED,OUOE049,41 -19-24MAY00-2/2
