Check Recovery Tank Coolant Level-170 HP Engine

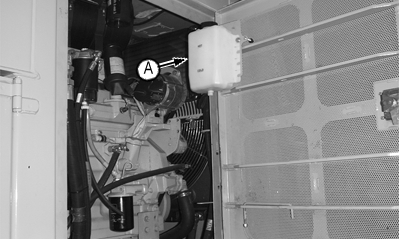

With the engine cold, coolant level must be between HOT and COLD marks on the recovery tank (A).

If coolant is below the COLD mark, add coolant to the recovery tank.


A-Recovery Tank

T118049B

CED,OUOE049,43 -19-24MAY00-1/2

causym CAUTION: Prevent possible injury from hot spraying water. DO NOT remove radiator filler cap unless engine is cool. Then turn cap slowly to the stop. Release air to relieve all pressure before you remove cap.

If recovery tank is empty, check for leaks. Repair as required. Add coolant to the radiator and the recovery tank.

NOTE: If recovery tank is full and radiator is low, check for leaks on radiator cap, and hose connections between radiator and coolant recovery tank.

Coolant level must be at bottom of the filler neck.

T6642EK

CED,OUOE049,43 -19-24MAY00-2/2
