Check Receiver Dryer Moisture Indicator

1. Open right side engine side shield to access receiver dryer.

CED,OUOE049,45 -19-24MAY00-1/2

IMPORTANT: Prevent possible compressor damage. If receiver dryer moisture eye color indicates "WET" (pink), dryer is saturated and should be changed within the next 100 machine hours to prevent further buildup of moisture in the refrigerant.

2. Check sight glass (1), to see if color indicates dryer is dry (blue) or wet (pink).

3. If wet (pink), see your authorized dealer within the next 100 machine hours to service the receiver dryer.

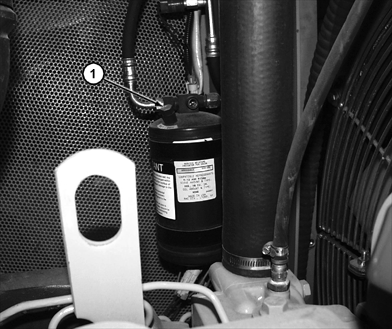

T131093C


1-Sight Glass

CED,OUOE049,45 -19-24MAY00-2/2
