Check Swing Gearbox Oil Level

1. Park machine on level surface.

2. Remove dipstick (1). Oil must be in the operating range.

3. If oil is needed, remove filler cap (2) and add oil. (See Fuels and Lubricants chapter.)

4. Check oil level.

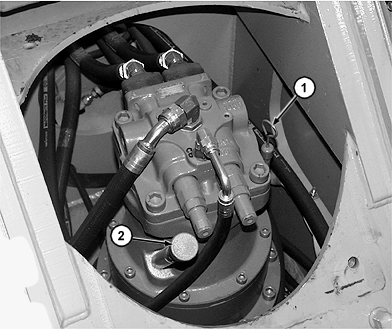

1-Dipstick
2-Filler Cap
