Replace Final Fuel Filter

1. Turn filter assembly (A) counterclockwise to remove. Allow sediment to drain into a container. Dispose of waste properly.

2. Clean filter base.

3. Install new filter. (Follow instructions on filter.)

4. Bleed fuel system. (See Bleeding Fuel System in Maintenance chapter.)

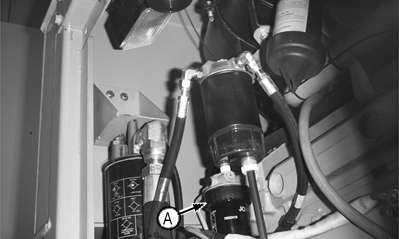

A-Filter Assembly

T118026D

Machine with 170 HP Engine Shown

CED,OUOE049,52 -19-24MAY00-1/1
