Replace Primary Fuel Filter (Water Separator)

1. Turn filter assembly (A) counterclockwise to remove. Allow sediment to drain into a container. Dispose of waste properly.

2. Turn sediment bowl (B) counterclockwise to remove from filter assembly.

3. Clean filter base.

4. Install new filter. (Follow instructions on filter.)

5. Install sediment bowl.

6. Bleed fuel system. (See Bleeding Fuel System in Maintenance chapter.)

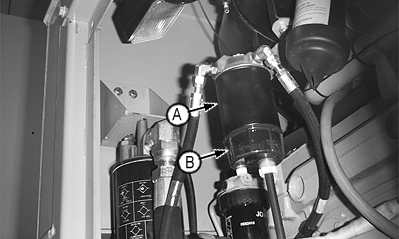

T118026C

Machine with 170 HP Engine Shown


A-Filter Assembly
B-Sediment Bowl
