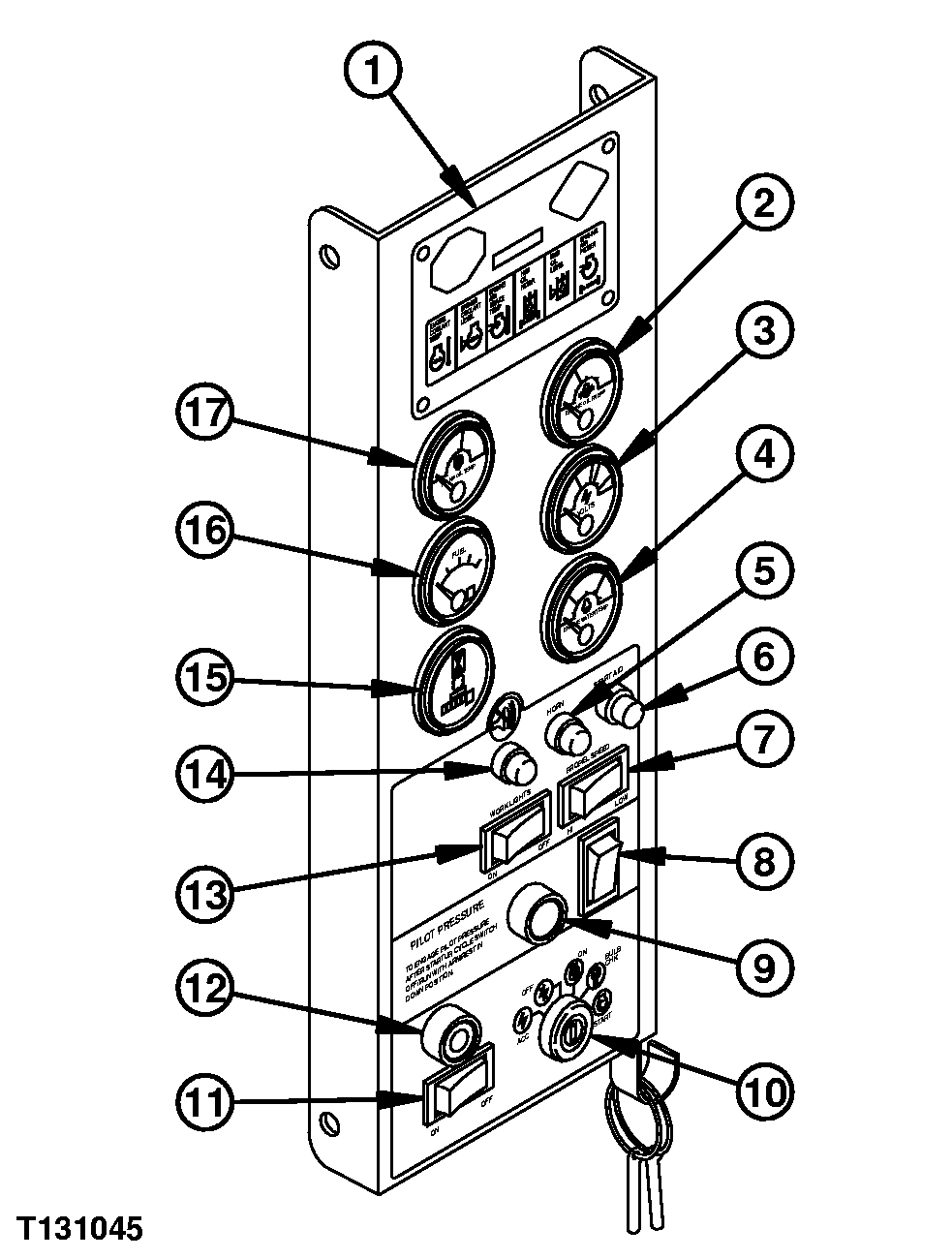

Gauges, Switches, and Indicators
1-Indicator Panel
2-Engine Oil Pressure Gauge
3-Voltmeter
4-Engine Coolant Temperature Gauge
5-Horn Switch
6-Start Aid Switch
7-Propel Speed Change Switch
8-Pilot Pressure Reset Switch
9-Pilot Pressure Indicator
10-Key Switch
11-Continuous Saw Switch (Continuous Saw only)
12-Continuous Saw Indicator (Continuous Saw only)
13-Work Light Switch
14-Travel Alarm Cancel Switch
15-Hour Meter
16-Fuel Gauge
17-Hydraulic Oil Temperature Gauge

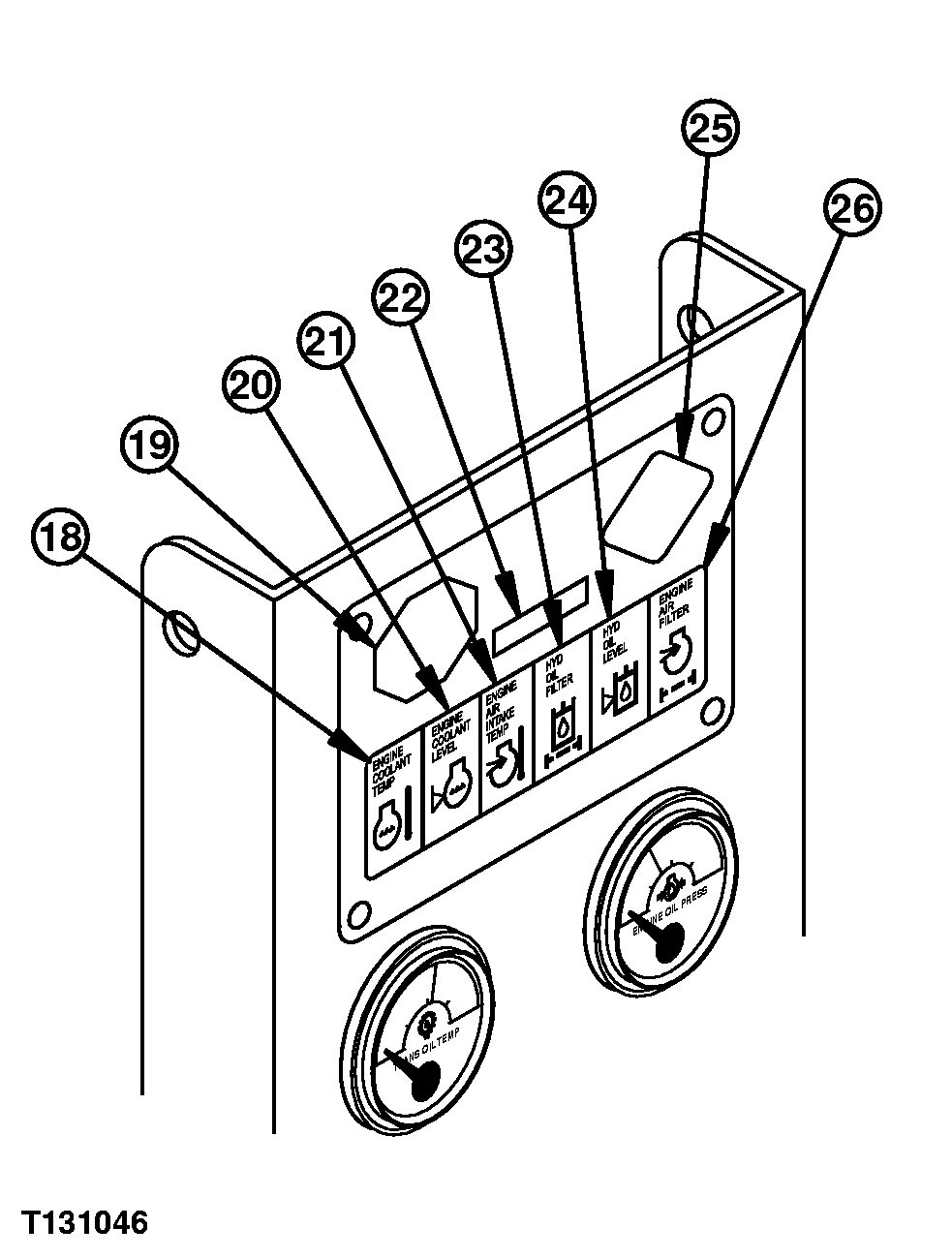

18-Engine Coolant Temperature Indicator
19-Not Used
20-Engine Coolant Level Indicator
21-Engine Air Intake Temperature Indicator (200 hp Engine only)
22-Not Used
23-Hydraulic Oil Filter Restriction Indicator
24-Hydraulic Oil Level Indicator
25-Not Used
26-Engine Air Filter Restriction Indicator
|
|
