Replace Hydraulic Tank Breather Filter

1. Remove lock pins (2).

2. Remove cover (1).

3. Turn filter (3) counterclockwise to remove.

4. Clean mounting surface.

5. Install new filter. Turn filter clockwise by hand until tight.

6. Lower cover. Secure cover.

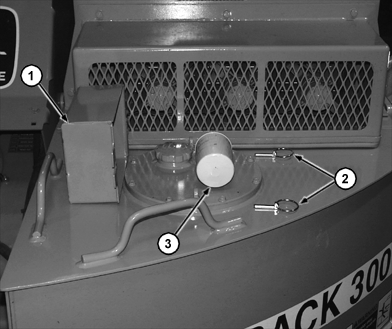

1-Cover
2-Lock Pin (2 used)
3-Hydraulic Tank Breather Filter

T130971C

CED,OUOE049,60 -19-24MAY00-1/1
