OMT185542 H0: 653G Feller-Buncher (880060- ), Block File: CED_OUOE049_64_19

1. Open bleed screws (1) on fuel filter and on water separator.

2. Pump water separator primer (2) until fuel fills separator bowl and until fuel escapes from water separator bleed screw.

3. Tighten water separator bleed screw.

4. Pump water separator primer (2) until fuel escapes from final fuel filter bleed screw.

5. Tighten final fuel filter bleed screw.

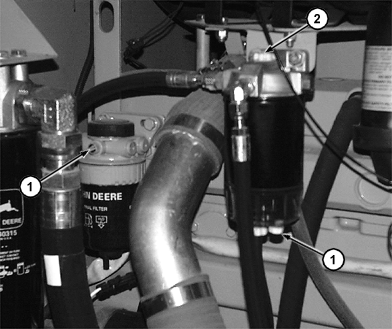

1-Bleed Screw (2 used)
2-Water Separator Primer

Machine with 200 HP Engine Shown

CED,OUOE049,64 -19-24MAY00-1/1
