Replacing Fuses

IMPORTANT: Install fuse with correct amperage rating to prevent electrical damage from overload.

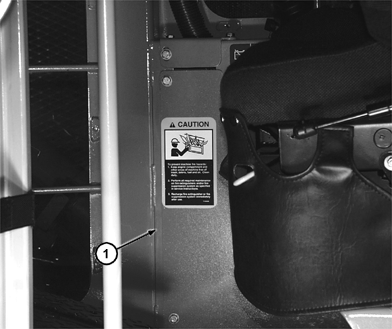

Remove cover (1) to access fuse panel. A fuse location decal is located inside the cover for correct fuse replacement.

1-Cover

CED,OUOE049,67 -19-24MAY00-1/1
