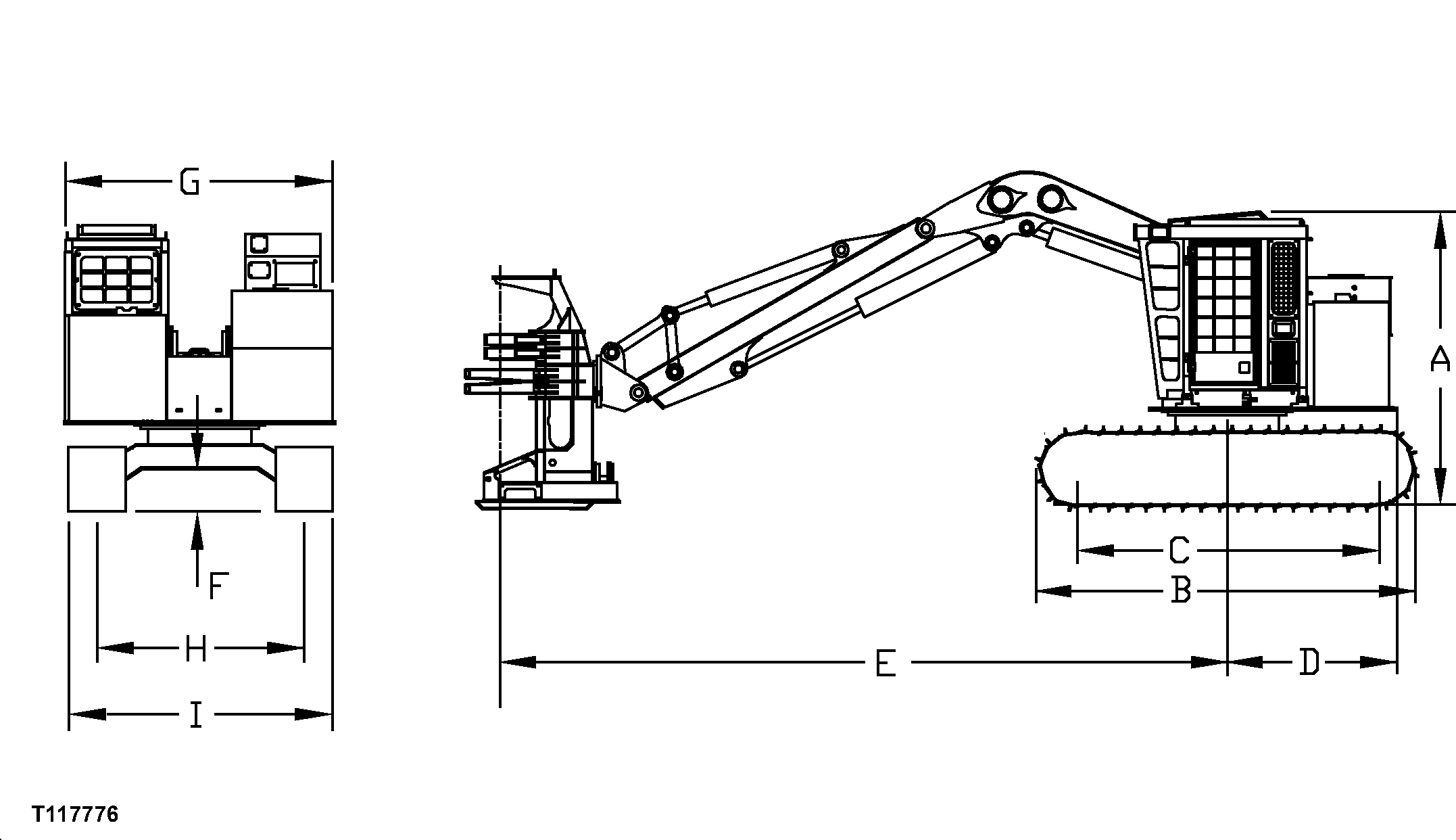

653G With Standard Undercarriage and Continuous Saw
|
|
|
|
|
| Item | Measurement | Specification |
|---|---|---|
|
A-Machine |
Overall Height | 3.20 m (10 ft 6 in.) |
|
B-Track |
Length | 3.96 m (13 ft 0 in.) |
|
C-Sprocket Center-to-Idler Center |
Length | 3.10 m (10 ft 2 in.) |
|
D-Rear End Swing Radius |
Distance | 1.85 m (6 ft 1 in.) with counterweight |
| Distance | 1.75 m (5 ft 9 in.) without counterweight | |
|
E-Reach |
Distance | 7.32 m (24 ft 0 in.) maximum |
| Distance | 2.92 m (9 ft 7 in.) minimum | |
|
F-Ground Clearance |
Distance | 584 mm (1 ft 11 in.) |
|
G-Upperstructure |
Width | 2.82 m (9 ft 3 in.) |
CED,OUOE049,75 -19-24MAY00-1/2 |
| Item | Measurement | Specification |
|---|---|---|
|
H-Track Gauge |
Width | 2.29 m (7 ft 6 in.) |
|
I-Width Over Tracks |
Width | 2.90 m (9 ft 6 in.) with 600 mm (24 in.) track shoes |
| Width | 3.20 m (10 ft 6 in.) with 900 mm (36 in.) track shoes |
CED,OUOE049,75 -19-24MAY00-2/2 |
