Drain Fuel Tank Sump

1. Remove fuel tank filler cap.

2. Loosen drain plug (1).

3. Allow water and sediment to drain for several seconds.

4. Tighten drain plug.

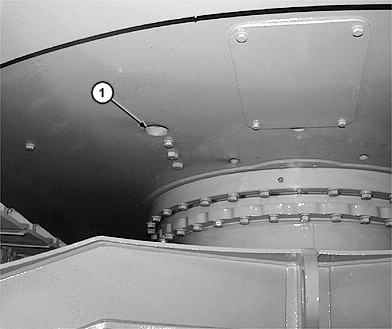

1-Drain Plug

T131004B

CED,TX14740,6231 -19-14OCT98-1/1
