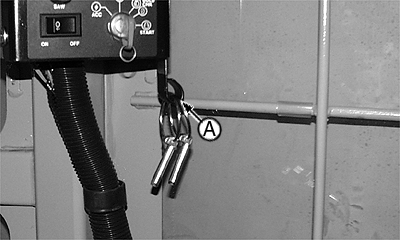

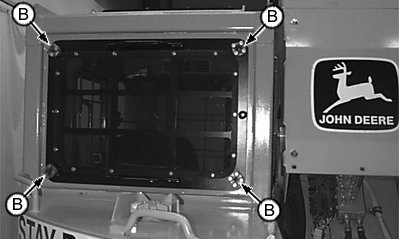

Opening Secondary Exit WindowIMPORTANT: Remove both lock pins (A) from inside of cab before starting machine so window can be removed from the outside of the cab. Store lock pins on clamp at side of monitor panel. Remove inside nuts (B) and push window out to remove secondary exit window from inside of cab. Remove outside nuts (B) and pull window out to remove secondary exit window from outside of cab.
|
|
CED,TX14740,6240 -19-20OCT98-1/1 |
