Drain Primary Fuel Filter (Water Separator)

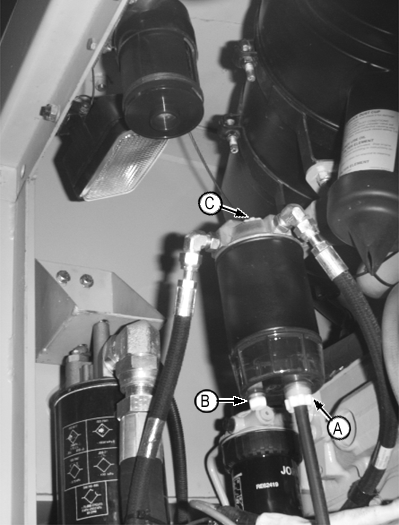

2. Put container under drain valve (A), or direct hose, if equipped, into a container.

3. Open drain valve and bleed screw (B) to extract water and sediment from fuel system.

4. Close drain valve.

5. Loosen pump cap screw (C) then press pump until fuel free of bubbles flows from around bleed screw.

6. Tighten pump cap screw.

7. Close bleed screw.

8. Close side shield.

9. Dispose of waste properly.

A-Drain Valve
B-Bleed Screw
C-Pump Cap Screw

CED,TX14740,6245 -19-22OCT98-1/1
