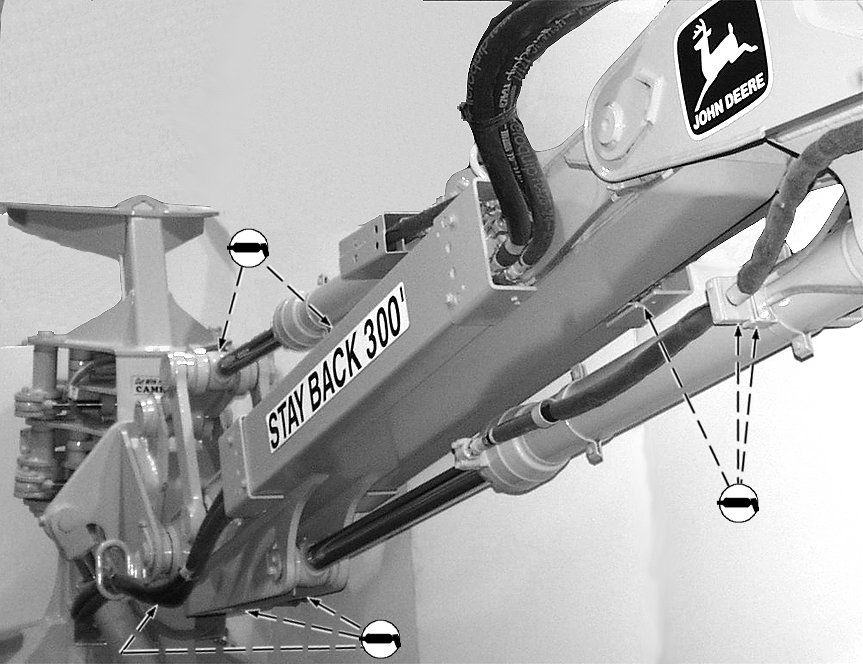

Lubricate Boom, Arm, and Cylinder Linkage

NOTE: On a new machine, several tubes of grease may be needed at the arm-to- head pin joint before grease escapes. IMPORTANT: Lubricate the following 10 points every three hours for the first 50 hours of operation

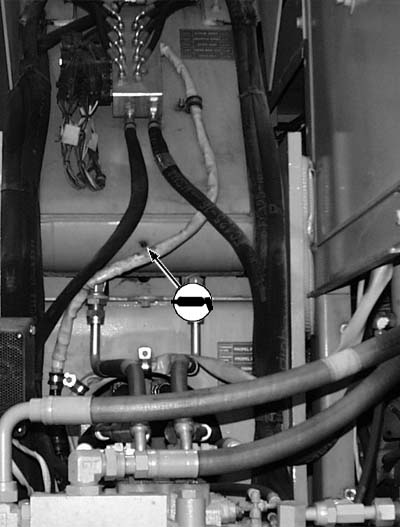

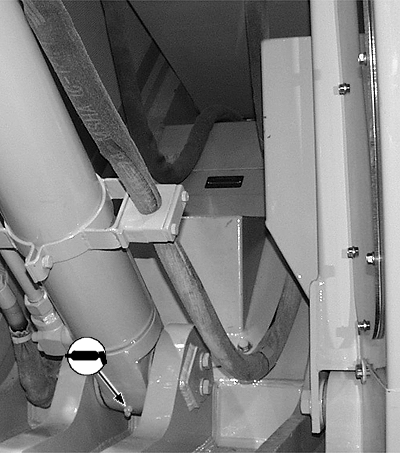

Lubricate the following 10 points until grease escapes at joints. (See Fuels and Lubricants chapter.) Grease daily for first 100 hours and when working in mud and water.

CED,TX14740,6287 -19-23NOV98-1/3
