Towing Machine

causym CAUTION: Prevent possible injury from unexpected machine movement. Block both tracks when disconnecting propel gearboxes. When propel gearboxes are disconnected, machine has no brakes and can move. The machine will roll free on a slope or while being towed.

1. Block tracks.

2. Drain oil from each propel gearbox. (See Change Propel Gearbox Oil in Maintenance-Every 2000 Hours chapter.)

3. Remove cover from each gearbox.

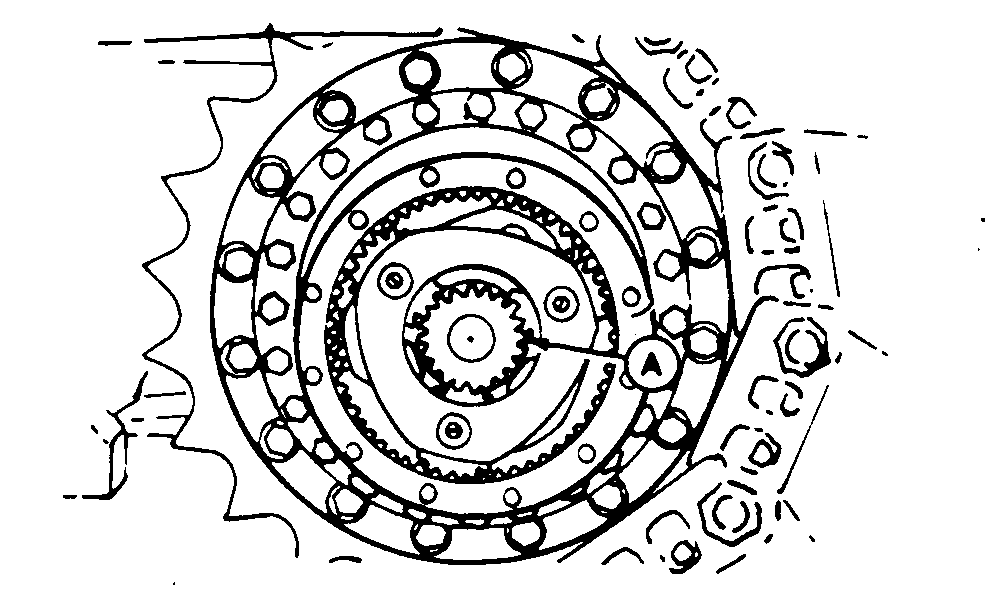

4. Remove sun gear (A) from each gearbox.

5. Install cover. Fill gearbox with oil.

T6879EG


A-Sun Gear

TX,40,FF2193 -19-17SEP98-1/2

6. Attach a tow line to frame loop (A).


A-Frame Loop

T7527BP

Front Tow Loop Shown

TX,40,FF2193 -19-17SEP98-2/2
