Check Propel Gearbox Oil Level

1. Bottom of check plug (B) must rest on horizontal centerline of gearbox.

causym CAUTION: High pressure release of fluids from pressurized system can cause serious burns. Wait for propel gearbox to cool. Keep body and face away from check plug. Gradually loosen check plug to release air pressure.

2. After propel gearbox has cooled, gradually loosen check plug (B) to release air pressure.

Oil must be to the bottom of hole.

NOTE: Factory fill oil is SAE 85W140.

3. If necessary, add oil through fill hole (A) until it flows out of check hole. (See Fuels and Lubricants chapter.)

4. Install fill and check plugs.

5. Check oil level of second propel gearbox.

6. If oil was added, after 15 minutes of propelling machine, check oil level again.

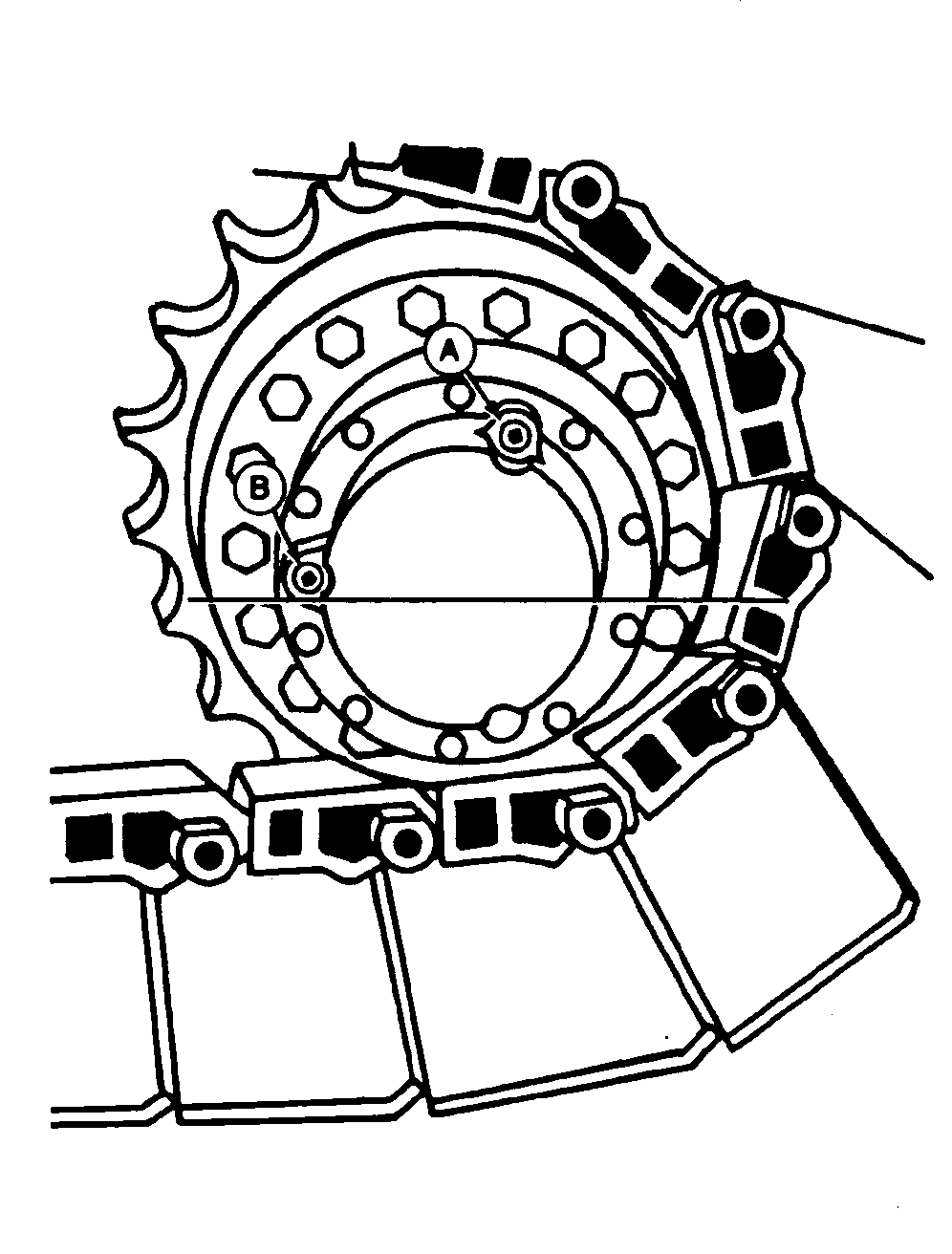

T7531AY


A-Fill Hole
B-Check Plug
