Machine Lifting Points

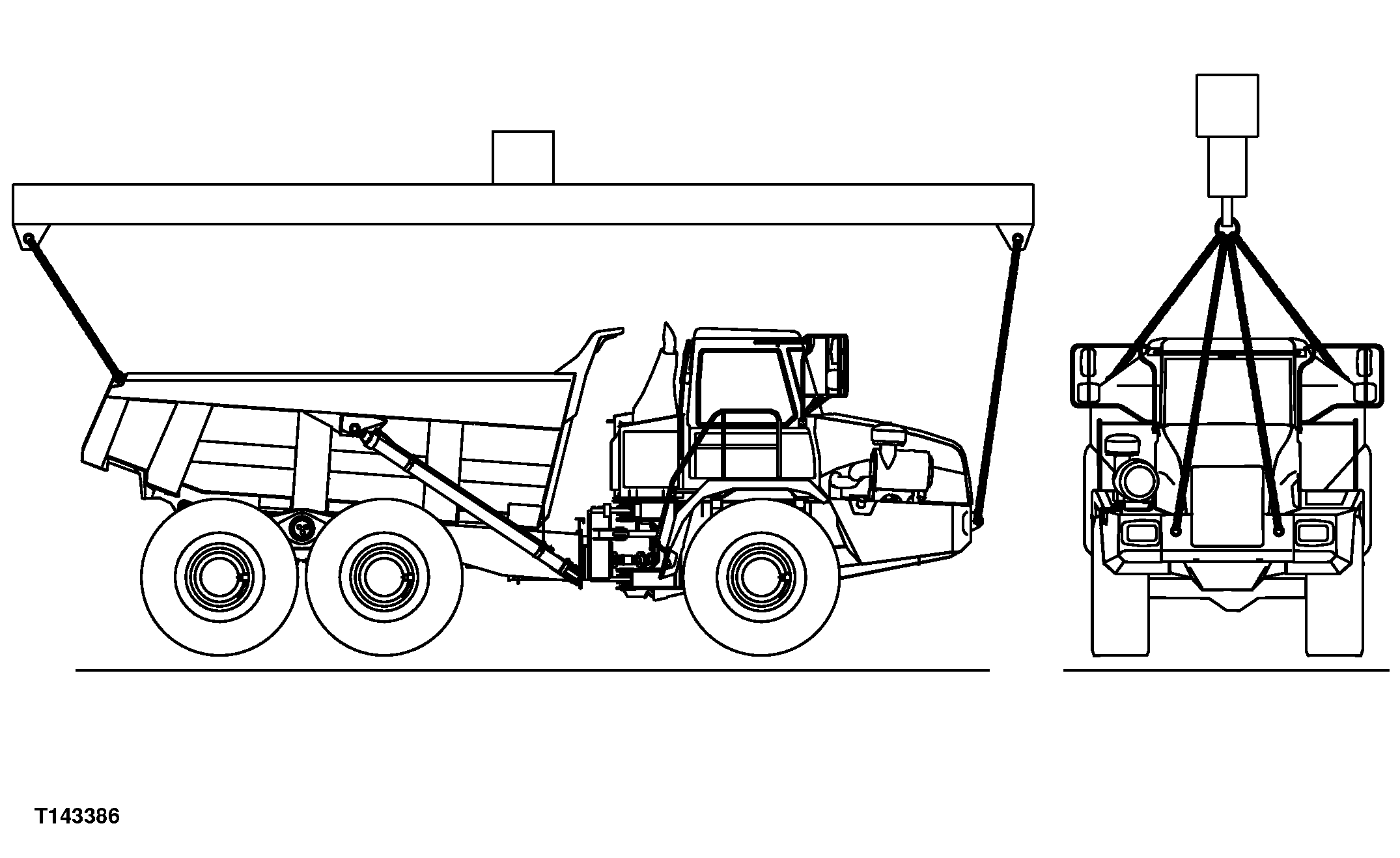

T143386-UN-28JUN01

Lifting the Machine

1. IMPORTANT: Install the articulation safety lock bar prior to lifting machine.

   NOTE: The machine lifting points are indicated on machine.

   Park the machine next to the crane.

2. Engage park brake.

3. IMPORTANT: To prevent damage to hood, use a nylon sling for front lifting points.

   Attach chains or straps to the lifting beam and the machine.

4. IMPORTANT: The crane must be able to carry total machine weight, 20 400 kg (44 500 lb) for 250D and 21 800 kg (48 100 lb) for 300D.

   Attach lifting beam to a crane.

5. Raise the lifting beam until all the play in chain is removed.

6. IMPORTANT: Move crane slowly to prevent excessive swinging of lifted machine.

   NOTE: Lifting beam must be at least 1032 cm (406 in.) in length.

   Lower lifting beam until the chain can be removed from the machine.

7. Raise the lifting beam with chains and move it away from machine.

8. Chock all wheels.

9. Secure machine to the trailer of transporting vehicle with chains.
