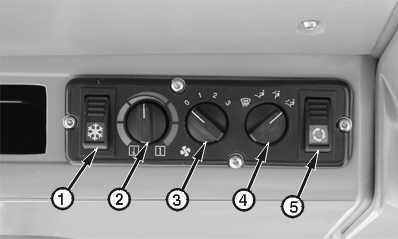

Heater and Air Conditioner Controls

T143696B-UN-05JUL01

1 - Air Conditioner Switch

2 - Temperature Control Knob

3 - Blower Speed Control Knob

4 - Air Flow Control Knob

5 - Recirculating Air Switch

1. Air Conditioner Switch: Push lower half of switch to turn air conditioner or defrost ON. Push upper half of switch to turn air conditioner or defrost OFF.
2. Temperature Control Knob: Turn counterclockwise for cooler air. Turn clockwise for warmer air.
3. Blower Speed Control Knob: Turn blower speed control knob to adjust blower speed.
4. Air Flow Control Knob: Turn knob to defrost, low, high or divided flow.
5. Recirculating Air Switch: Push lower half of switch to recirculate air. Push the upper half of the switch for fresh air.
