Operator Seat and Instructional Seat

T144959B-UN-24AUG01

T143728B-UN-24AUG01

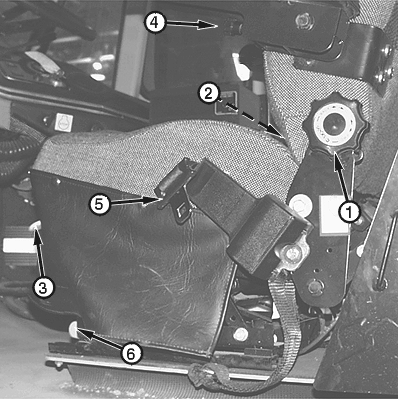

1 - Backrest Angle Adjustment Knob

2 - Weight Adjustment Lever

3 - Seat Height Adjustment Lever

4 - Arm Rest Angle Adjustment Knob

5 - Seatbelt

6 - Fore/Aft Adjustment Lever

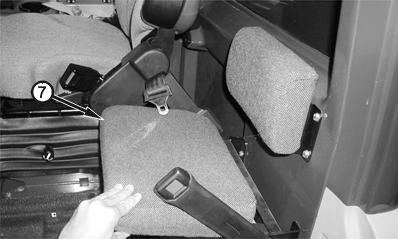

7 - Instructional Seat

1. Backrest Adjustment Knob: Turn knob to move backrest to desired position.
2. Weight Adjustment Lever: Use adjustment lever to obtain the most comfortable seat suspension.
3. Seat Height Adjustment Lever: Pull and hold adjustment lever up to obtain the most comfortable driving position.
4. Arm Rest Angle Adjustment Knob: The arm rests may be lifted to allow easier access to seat and then lowered for driver comfort. To adjust angle of arm rests, turn arm rest angle adjustment knob under arm rest clockwise or counterclockwise until the most comfortable position is reached.
5. Seat Belt:

   CAUTION: Check condition of seat belt and mounting hardware before operating machine. Replace seat belt at least every 3 years, regardless of condition.

   Seat belt must fit snugly over abdomen. Seat belt extends as necessary to fit comfortably.

6. Fore/Aft Adjustment Lever: Lift and hold seat cushion adjustment lever and adjust seat cushion angle as desired. Release lever to lock seat into position.
7. Instructional Seat: The instructional seat is non-adjustable and is equipped with a seat belt.
