Safety Features

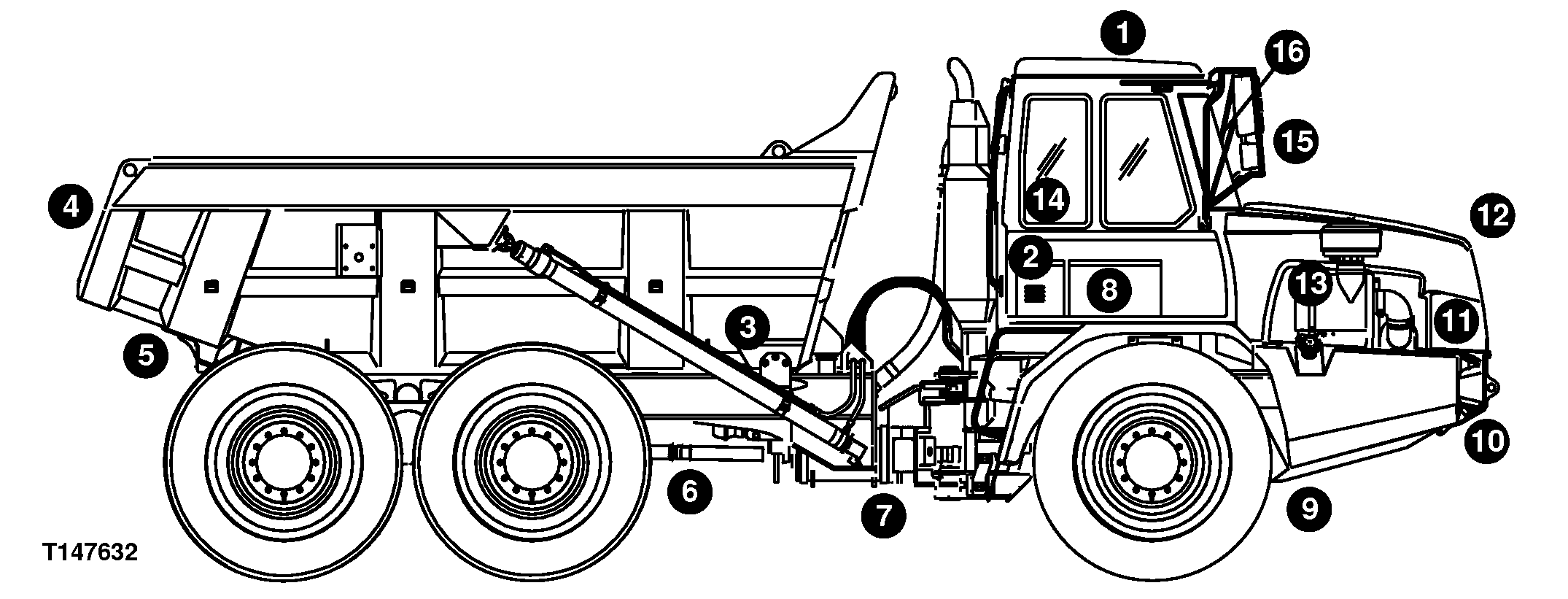

T147632-UN-19NOV01

Please remember, the operator is the key to preventing accidents.

1. ROPS/FOPS Cab Protection. Structures designed to help protect the operator are certified to ISO, SAE, and OSHA. Enclosures also deflect sun and rain.
2. Cab with Heater/Defroster. Cab ventilation system circulates both outside and inside air through filters for a clean working environment. Built in defroster vents direct air flow for effective window defogging/deicing.
3. Dump Body Service Lock. A mechanical lock is provided for working on or around this machine with the dump body raised.
4. Stop/Backup Lights. Highly visible lights are standard equipment.
5. Backup Alarm. Alerts bystanders when reverse travel direction is selected by operator.
6. Independent Parking Brake. Is air released/spring applied and engages whenever the key switch is turned off.
7. Articulation Locking Bar. A self-storing mechanical lock is provided for transport or service.
8. Secondary Steering. Ground driven, continuously in operation. Secondary steering indicator light will light.
9. Horn. Standard horn is useful when driving or signalling co-workers.
10. Halogen Lights and Turn Signals. High intensity halogen drive/work lights and high-visibility turn signals are standard equipment.
11. Engine Fan Guard. A secondary fan guard inside the engine compartment helps prevent contact with rotating fan blades.
12. Bypass Start Protection. Shielding over the starter terminals helps prevent dangerous bypass starting.
13. Exhaust Brake and Transmission Retarder. Engages whenever the truck is in motion and the operator lets up on the accelerator.
14. Seatbelt Retractors. Help keep belts clean and convenient to use.
15. Mirrors. Large exterior mirrors on both sides offer the operator a view of activity behind him.
16. Large Windshield Wiper With Washer. Extra long wiper cleans large windshield area.
