Operator Controls

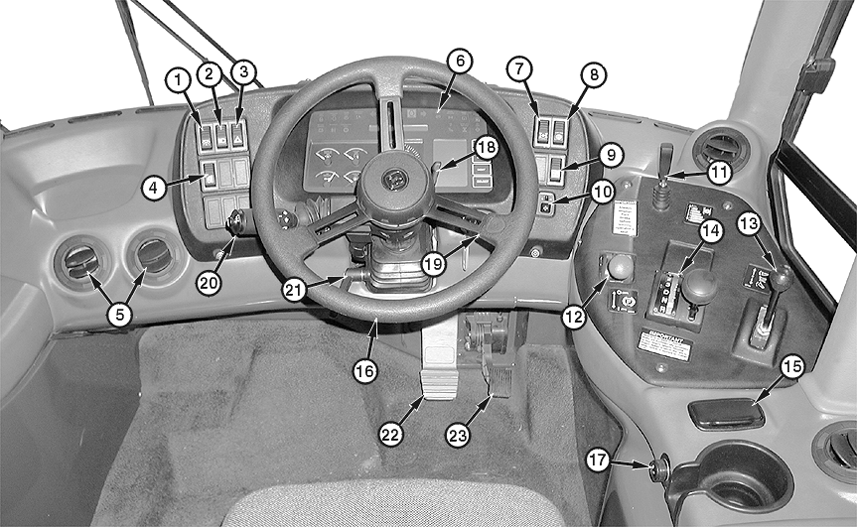

T147633B-UN-08NOV01

1 - Dome Light Switch

2 - Headlight Switch

3 - Warning Lights Switch

4 - Rear View Mirrors Defrost Switch—If Equipped

5 - Air Vent (6 used)

6 - Instrument Panel

7 - Inter-Axle Lock Switch

8 - Range Hold Switch

9 - Start Aid Switch

10 - Rear View Mirrors Adjustment Controls—If Equipped

11 - Transmission Torque Retarder Control Lever

12 - Park Brake Lever

13 - Dump Body Control Lever

14 - Gearshift Control

15 - Ash Tray (2 used)

16 - Steering Wheel

17 - Cigarette Lighter

18 - Telescopic Steering Adjust Lever

19 - Key Switch

20 - Steering Column Lever

21 - Tilt Steering Adjust Lever

22 - Service Brake Pedal

23 - Accelerator Pedal

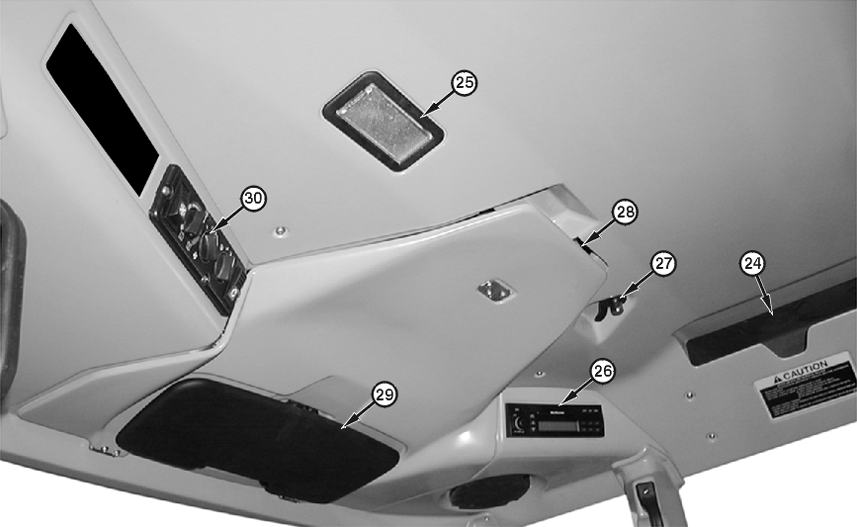

T142703C-UN-15NOV01

24 - Operator's Manual Compartment

25 - Dome Light

26 - Radio—If Equipped

27 - Circuit Breaker Compartment Latch

28 - Circuit Breaker Compartment

29 - Visor

30 - Heater and Air Conditioner Control Panel
