Releasing Park Brake for Towing

CAUTION: Machine will roll freely when drive shafts are disconnected. To prevent injury, chock wheels and connect machine to towing vehicle before disconnecting drive shafts.

IMPORTANT: To prevent damage to transmission, disconnect front axle and middle axle drive shafts when towing a machine with an inoperable engine.

1.
   T147641B-UN-08NOV01

   Front Axle Drive Shaft


   T147642B-UN-08NOV01

   Middle Axle Drive Shaft

   1 - U-joint Cap Screw (4 used)

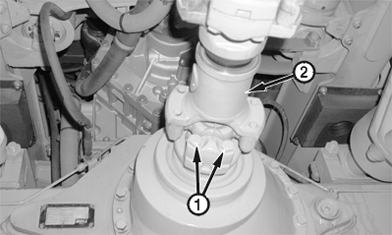

   2 - Front Axle Drive Shaft

   3 - U-joint Cap Screw (4 used)

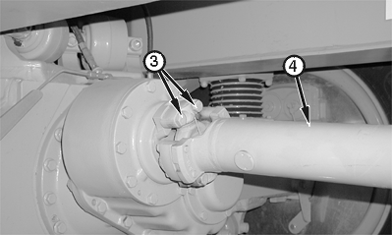

   4 - Middle Axle Drive Shaft

   Chock wheels and connect machine to towing vehicle prior to disconnecting drive shafts.

---




2. Remove U-joint cap screws (1) and disconnect front axle drive shaft (2) at rear of front axle. Move drive shaft aside and support to allow front axle drive shaft yoke to turn freely.

3. Remove U-joint cap screws (3) and disconnect middle axle drive shaft (4) at front of middle axle. Move drive shaft aside and support to allow middle axle drive shaft yoke to turn freely.
