Mechanically Releasing Park Brake

CAUTION: Machine will roll freely when park brake is released. To prevent injury, chock wheels before releasing park brake.

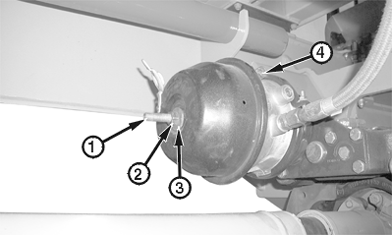

  1. T147643B
    T147643B-UN-08NOV01

    1 - Release Stud

    2 - Nut

    3 - Washer

    4 - Release Stud Storage Location

    Chock tires to prevent machine rollaway.


  2. Remove release stud (1), nut (2) and washer (3) from storage position (4).

  3. Install release stud in hole at rear of park brake actuator housing and rotate clockwise a 1/4 turn to lock into place.

  4. Install washer and nut onto release stud and tighten until park brake releases.
