Install Articulation Safety Lock Bar

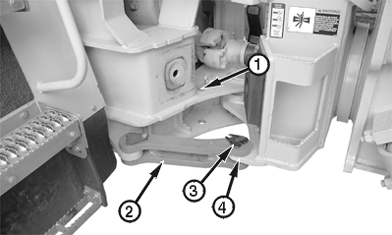

T147644B
T147644B-UN-09NOV01

1 - Storage Location

2 - Articulation Safety Lock Bar

3 - Pin

4 - Locking Lug

  1. Steer machine to straighten articulation joint.

  2. Stop engine and engage park brake.

  3. Remove keys from key switch and attach a DO NOT OPERATE sign to steering wheel.

  4. Remove pin (3) from articulation safety lock bar (2) and storage location (1).

  5. Swing articulation safety bar rearward to locked position. Ensure that holes line up on locking lug (4).

  6. Install pin through articulation safety lock bar and locking lug.

OUO1043,0000DFE-19-20011030
