Lower and Raise Bottom Guard

T147645B
T147645B-UN-19NOV01

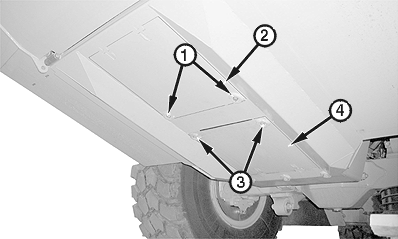

1 - Front Bottom Guard Cap Screw

2 - Front Bottom Guard

3 - Rear Bottom Guard Cap Screw

4 - Rear Bottom Guard

Remove front bottom guard cap screws (1) to lower front bottom guard (2) or remove rear bottom guard cap screws (3) to rear bottom guard lower rear bottom guard (4).

Lift bottom guard into place and install cap screws to raise bottom guards.

OUO1043,0000DFF-19-20011030
