Service Engine Air Intake System

T147649B-UN-09NOV01

T147650B-UN-09NOV01

T147651B-UN-09NOV01

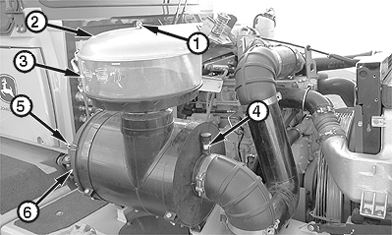

1 - Wing Nut

2 - Lid

3 - Precleaner Bowl

4 - Service Indicator

5 - Clasp (4 used)

6 - Air Cleaner Cover

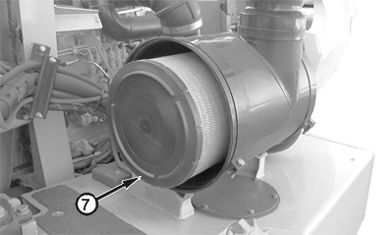

7 - Primary Element

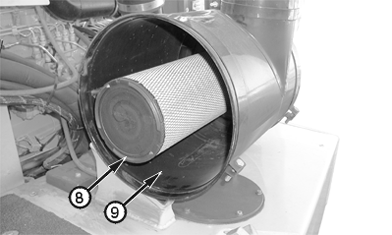

8 - Secondary Element

9 - Air Cleaner Housing

1. Empty the precleaner bowl.

   1. Loosen wing nut (1) and remove lid (2).

   2. Remove precleaner bowl (3). Empty precleaner bowl and wipe clean with a lint-free cloth.

   3. Install precleaner bowl and lid. Tighten wing nut.

2. Check service indicator (4). If window shows a red flag, service air cleaner filter elements.

   1. Unfasten clasps (5) and remove air cleaner cover (6).

   2. Remove and inspect primary element (7). Replace, if necessary.

   3. NOTE: At minimum, secondary element must be replaced every third time primary element is replaced.

      Remove and inspect secondary element (8). Replace, if necessary.

   4. Wipe dust from air cleaner housing (9) with a lint-free cloth. Squeeze unloader valve to empty air cleaner housing of dust and debris. Inspect air cleaner housing for damage.

   5. Install secondary element, ensuring that it is firmly and evenly seated.

   6. Install primary element, ensuring that it is firmly and evenly seated.

   7. Install air cleaner cover and fasten clasps.

3. Press top of service indicator to reset flag.
