Drain Primary Fuel Filter (Water Separator)

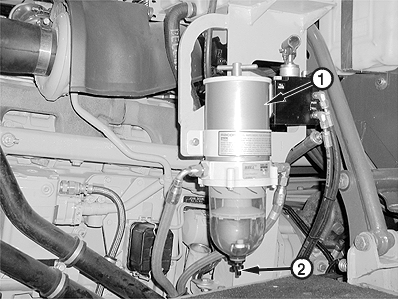

T147668B-UN-19NOV01

1 - Primary Fuel Filter

2 - Drain Screw

1. Open hood.

2. Put a suitable container under drain screw (2).

3. NOTE: Dispose of waste properly.

   Loosen drain screw on primary fuel filter (1) and allow water and sediment to drain into container.

4. Tighten drain screw when clean fuel flows out, or when sediment bowl is empty.
