Check Engine Oil Level

1.

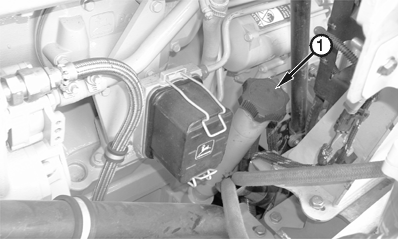

   T147659B-UN-19NOV01

   1 - Dipstick

   Park machine on level ground.

---




2. NOTE: Check engine oil level with engine cold

   Allow time for engine to cool and oil to settle in oil pan. Open hood.

3. Remove dipstick (1) and wipe clean with a lint-free cloth.

4. Insert dipstick until fully seated.

5.

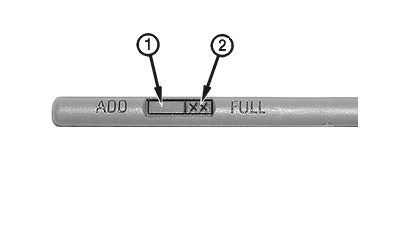

   T148256B-UN-19NOV01

   1 - Low Mark

   2 - Full Mark

   Remove dipstick and check oil level. Oil level should be in the full mark (2).

---




6. If oil level is in low mark (1), add oil as necessary. (See Change Engine Oil and Replace Filter in Maintenance—Every 250 Hours section.)
