Check Dry Caliper Service Brake Pad Wear

T148251B
T148251B-UN-26NOV01

250D Shown; 300D Similar

T148252B
T148252B-UN-26NOV01

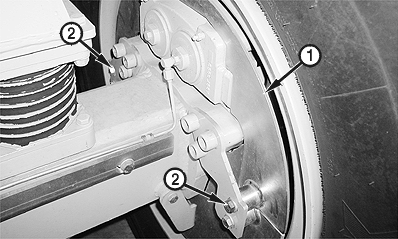

1 - Upper Brake Shield

2 - Cap Screw (2 used)

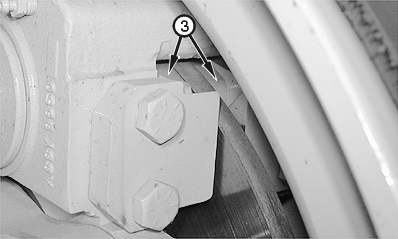

3 - Brake Pad (2 used)

NOTE: If operating in wet or muddy conditions, check wear indicators every 250 hours.

  1. Remove cap screws (2) and upper brake shield (1).

  2. Inspect brake pads (3) for wear. If pads are not within specification, see your authorized dealer.

    ItemMeasurementSpecification
    Service Brakes
    PadThickness3 mm (0.12 in.) Minimum

  3. Install upper brake shield and cap screws.

  4. Repeat procedure for each wheel.
