Lubricate Dump Body Pivots, Oscillation Tube, Articulation Joints, Steering Cylinder Rod Ends, and Oscillation Tube Through Drive Shaft Bearings

T149788B-UN-08JAN02

T148153B-UN-08JAN02

T148150B-UN-08JAN02

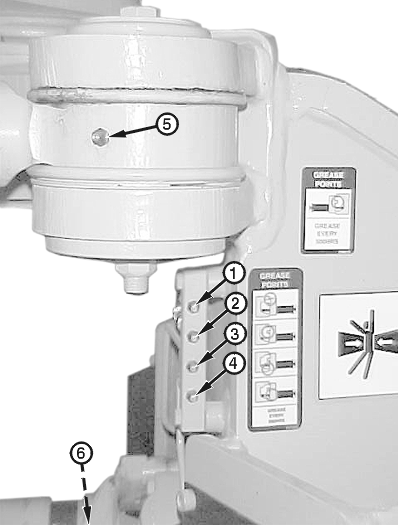

1 - Lubrication Fitting—Upper Articulation Joint

2 - Lubrication Fitting—Oscillation Tube Through Drive Shaft Front Bearing

3 - Lubrication Fitting—Lower Articulation Joint

4 - Lubrication Fitting—Right Steering Cylinder Rod End

5 - Lubrication Fitting—Left Steering Cylinder Rod End

6 - Lubrication Fitting—Drive Shaft

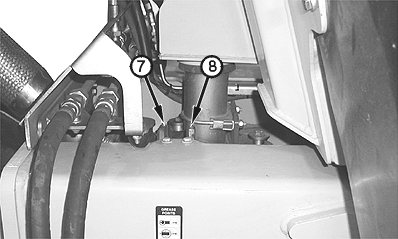

7 - Lubrication Fitting—Oscillation Tube

8 - Lubrication Fitting—Oscillation Tube Through Drive Shaft Rear Bearing

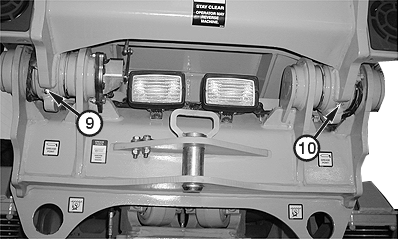

9 - Lubrication Fitting—Left Side Dump Body Pivot

10 - Lubrication Fitting—Right Side Dump Body Pivot
