Replace Primary Fuel Filter (Water Separator)

T147668C-UN-19NOV01

T147669B-UN-19NOV01

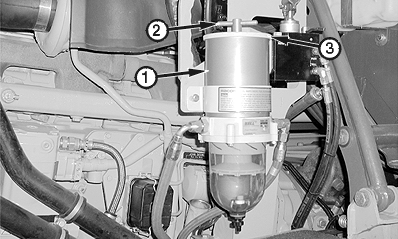

1 - Primary Fuel Filter

2 - Retaining Screw

3 - Lid

4 - Element

1. Open hood. Clean dirt and debris from primary fuel filter (1) and surrounding area.

2. Remove retaining screw (2) and lid (3).

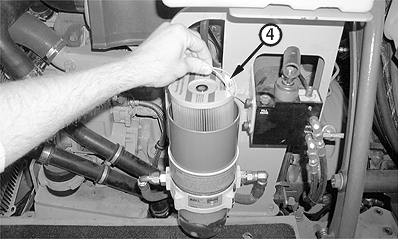

3. Remove element (4).

4. Install new element. Ensure element is properly seated.

5. Fill primary fuel filter with clean fuel.

6. Install lid and retaining screw.

7. Start engine and let it run for 1 minute. Check for leaks around lid. Tighten retaining screw only enough to stop leaks.
