Replace Final Fuel Filter

T147667B
T147667B-UN-09NOV01

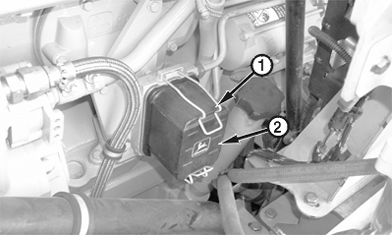

1 - Retaining Clamp (2 used)

2 - Final Fuel Filter

  1. Open hood. Clean dirt and debris from final fuel filter (2) and surrounding area.

  2. Loosen filter retaining clamps (1) and remove final fuel filter.

  3. Install new final fuel filter and secure filter retaining clamps.

  4. Bleed fuel system. (See Bleed Fuel System in Miscellaneous—Maintenance section.)

OUO1043,0000E15-19-20011030
