Check Engine Air Intake System

1.

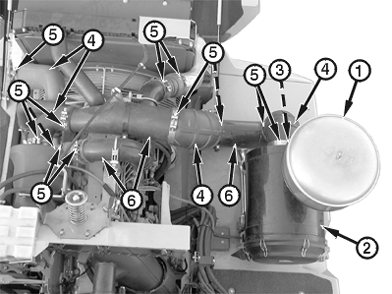

   T147679B-UN-09NOV01

   1 - Precleaner

   2 - Air Cleaner Housing

   3 - Service Indicator

   4 - Rubber Elbow (4 used)

   5 - Clamp (12 used)

   6 - Pipe (3 used)

   Check air cleaner assembly for damage to precleaner (1) and air cleaner housing (2).

---




2. Check that service indicator (3) is not showing a red flag. If red flag is shown, service air cleaner and reset service indicator.

3. Check rubber elbows (4), clamps (5), and pipes (6) for tightness, cracks, or damage.
