Miscellaneous Equipment

Lights

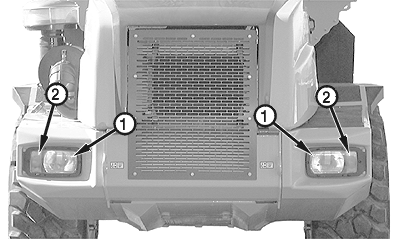

T147635B-UN-29NOV01

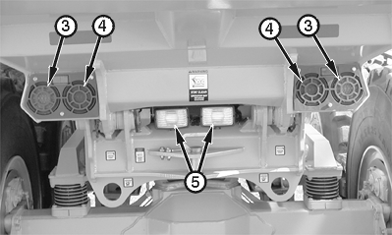

T147636B-UN-09NOV01

1 - Headlight and Front Park Light (2 used)

2 - Front Turn Indicator Light (2 used)

3 - Rear Turn Indicator Light (2 used)

4 - Tail, Brake and Park Light (2 used)

5 - Back Up Light (3 used)

High beam and low beam headlights (1) are controlled using the steering column lever. (See Steering Column Lever in this section.)

Tail, brake and park lights (4) light when brake pedal is depressed or when accelerator pedal is released and torque retarder and exhaust brake are activated.

Turn indicator lights (2 and 3) light when warning lights or turn signals are turned ON.

Back-up lights (5) light when machine transmission is shifted to reverse.

Secondary Exit

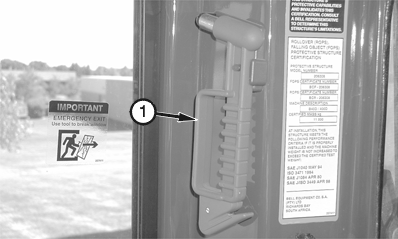

T143573B-UN-06JUL01

1 - Secondary Exit Tool

If necessary, use the secondary exit tool (1) to break the glass of the right-side window.

12-Volt Accessory Outlet

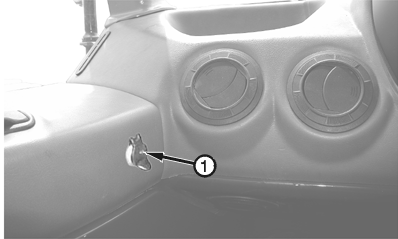

T144144B-UN-19JUL01

1 - 12-Volt Accessory Outlet

The 12-volt accessory outlet is used to power operator accessories, as necessary.

Storage Compartment

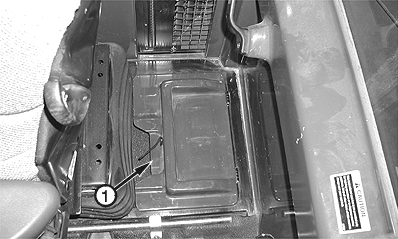

T144275B-UN-27JUL01

1 - Storage Compartment

Store items in compartment located behind the operator's seat to keep them clean and dry.

Wheel Wrench and Brace

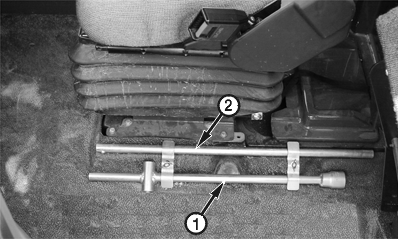

T143737B-UN-06JUL01

1 - Wheel Wrench

2 - Brace

NOTE: Brace is also used as cab tilt pump handle.

The wheel wrench (1) and brace (2) are located at rear of cab, behind the operator's seat and are secured in position by 2 plates.

Windshield Washer Reservoir

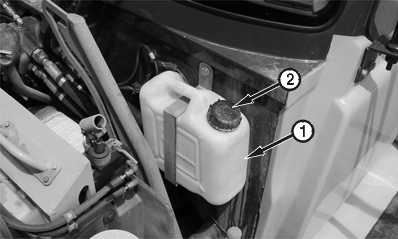

T143736B-UN-06JUL01

1 - Windshield Washer Reservoir

2 - Filler Cap

The windshield washer reservoir (1) is located at front of cab under hood.

To fill reservoir:

1. Tilt hood.

2. Remove filler cap (2) and fill reservoir with washer cleaning fluid.

3. Install cap. Ensure that electrical connection and fluid delivery hose are also secure.

4. Close hood.
