Replace Tail and Brake Light and Rear Turn Signal

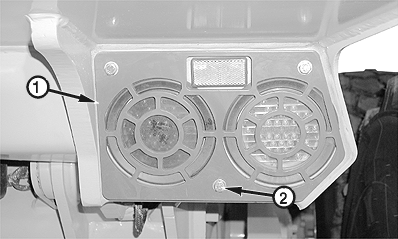

T147680B-UN-19NOV01

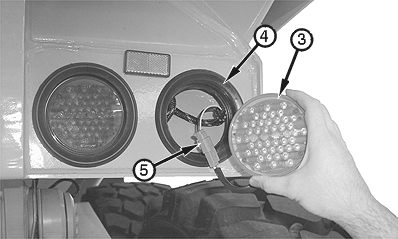

T143366C-UN-19NOV01

1 - Cap Screws (3 used)

2 - Protective Grille

3 - Lamp

4 - Rubber Seal

5 - Connector

1. Remove cap screws (1) and protective grille (2).

2. IMPORTANT: DO NOT use excessive force when removing lamp, or plastic or rubber may become damaged.

   Pry gently around edges of lamp (3) to remove from rubber seal (4).

3. Disconnect connector (5). Discard lamp.

4. Connect connector to new lamp.

5. Install lamp in rubber seal. Index lamp so “TOP” marking is at top. Push lamp into rubber seal with firm, even pressure. Ensure that lamp is securely seated.

6. Install protective grille and cap screws.
