Using Inter-Axle Lock

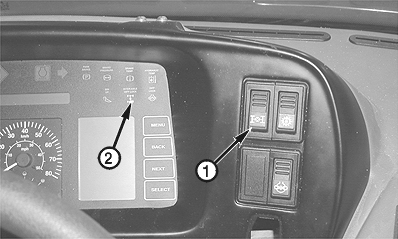

T143346B-UN-28JUN01

1 - Inter-Axle Lock Switch

2 - Inter-Axle Lock Indicator

IMPORTANT: The inter-axle lock must only be used when ground conditions are very poor and not on graded or tarred surfaces.

The inter-axle lock can be engaged while machine is moving.

To engage inter-axle lock, reduce engine speed (accelerator pedal less than 10% depressed), press lower half of inter-axle lock switch (1) and ensure that inter-axle lock indicator (2) lights.

To disengage inter-axle lock, press upper half of inter-axle lock switch.
