Replace Start Aid Can

1. CAUTION: Prevent possible injury from exploding container. Starting fluid is highly flammable. Keep container away from heat, sparks and open flame. Contents are pressurized. DO NOT puncture or incinerate container. Remove can from machine if engine does not need starting fluid.

   CAUTION: Remove can from container and install container upside-down to protect start aid components from dust.


   TS281-UN-15APR13


   T148320B-UN-26NOV01

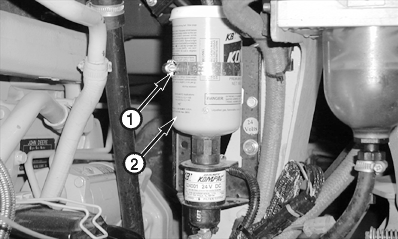

   1 - Clamp

   2 - Start Aid Can

   Open hood.

---




2. Loosen clamp (1).

3. Turn start aid can (2) counterclockwise to remove from base.

4. Remove safety cap and spray button from new start aid can.

5. Install new start aid can. Hand tighten.

6. Tighten clamp.

7. Close hood.
