Check Park Brake Pad Wear

1.
   T124415B-UN-09SEP99

   Raise the dump body and install the dump body prop.

---

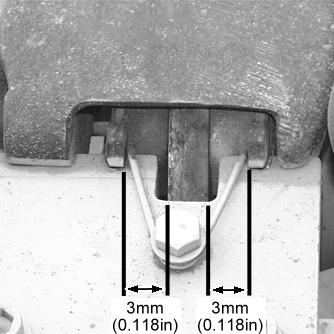

2. Measure thickness of park brake pads.

3. If either of the brake pads has worn to minimum specified thickness, both brake pads must be replaced. (See your authorized dealer.)

   Item	Measurement	Specification
   Park Brake
   Pad	Thickness	3.0 mm minimum 0.12 in. minimum
