Replace Front Turn Signal Bulb, Headlight Bulb, and Front Park Light Bulb

T143214B-UN-28JUN01

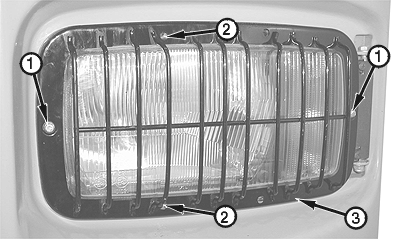

1 - Cap Screw (2 used)

2 - Screw (2 used)

3 - Headlight Grille—If Equipped

1. IMPORTANT: Prevent bulb damage. Use a clean cloth or tissue paper to handle bulbs. If touched, clean glass thoroughly with rubbing alcohol and clean, lint-free cloth. DO NOT use a halogen bulb that is not clean.

   Remove cap screws (1) and headlight grille (3) from headlight assembly.

2. Remove screws (2) securing headlight assembly to fender.

3. Swing headlight assembly out of fender.

4.
   T143218B-UN-28JUN01

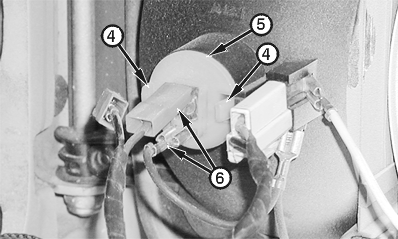

   4 - Tab (2 used)

   5 - Front Turn Signal Bulb

   6 - Wire Lead (2 used)

   Replace front turn signal bulb, if necessary:

   1. Disconnect wire leads (6) from front turn signal bulb (5).

   2. Squeeze tabs (4) and remove front turn signal bulb from headlight assembly.

   3. Install new front turn signal bulb.

   4. Connect wire leads.

---




5.
   T143212B-UN-28JUN01

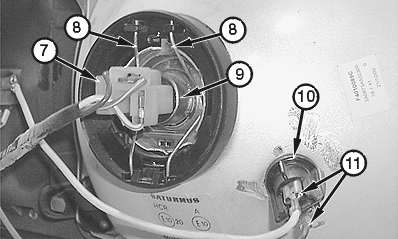

   7 - Connector

   8 - Retaining Clips (2 used)

   9 - Headlight Bulb

   10 - Front Park Light Bulb

   11 - Wire Lead (2 used)

   Replace headlight bulb, if necessary:

   1. Disconnect connector (7) from headlight bulb (9).

   2. Squeeze retaining clips (8) to unfasten. Swing retaining clips downward.

   3. Remove headlight bulb from headlight assembly.

   4. Install new headlight bulb.

   5. Swing retaining clips upward. Squeeze retaining clips to fasten.

   6. Connect connector to headlight bulb.

---




6. Replace front park light bulb, if necessary:

   1. Disconnect wire leads (11) from front park light bulb (10).

   2. Twist front park light bulb counterclockwise to unfasten. Remove from headlight assembly.

   3. Install new front park light bulb. Twist clockwise to fasten.

   4. Connect wire leads to front park light bulb.

7. Swing headlight assembly into fender.

8. Install screws to secure headlight assembly to fender.

9. Adjust headlights.

10. Install headlight grille and cap screws.
