Replace Dome Light Bulb and Circuit Breaker Compartment Light Bulb

T143363B
T143363B-UN-28JUN01

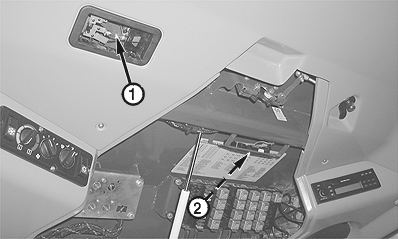

Lens Cover Removed for Clarity of Photo

1 - Dome Light Bulb

2 - Circuit Breaker Compartment Light Bulb

  1. IMPORTANT: DO NOT use excessive force when removing lens cover, or plastic may become damaged.

    Pry gently along edges of lens cover to remove.

  2. Remove and replace dome light bulb (1) or fuse compartment light bulb (2).

  3. Install lens cover. Push with gentle, even pressure until lens cover “snaps” into place. Lens cover should rock back and forth between 3 detent positions.

OUO1079,00003D6-19-20010622
